PCE-VA 20-SET Multifunction HVAC Meter with Flow Hoods
Combination anemometer-hygrometer-thermometer for HVAC system testing, adjusting and balancing (TAB)

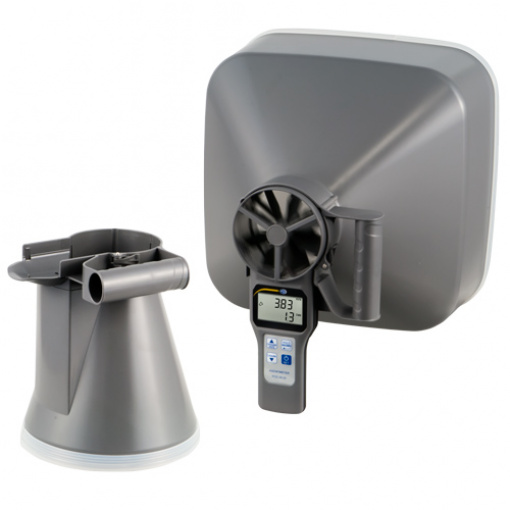

PCE-VA 20-SET is a multifunction HVAC meter with flow hoods for testing, assessing and balancing (TAB) heating, ventilation and air conditioning or cooling (HVAC) systems. This combination anemometer-hygrometer-thermometer features a 10 cm / 3.9″ diameter fan impeller, easy-to-read backlit LCD, and functions such as display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection.
– Measures air flow velocity, volume flow, relative humidity, air temperature, dew point temperature and wet-bulb temperature
– Air flow velocity range: 0.2 … 30 m/s (39.4 … 5905.5 fpm)
– Accuracy: ±(1.5% of measured value + 0.3 m/s) when less than 20 m/s, ±(3% of measured value + 0.3 m/s) when more than 20 m/s
– Resolution: 0.1
– Includes 2 x capture hoods (1 x round 210 mm / 8.3 in Ø, 1 x square 346 x 346 mm / 13.6 x 13.6 in)
– 10 cm / 3.9 in Ø fan impeller
– Easy-to-read backlit LCD
– Display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection functions
Technical Specification | ||
Air flow velocity measuring range |
| |
Air flow velocity accuracy | <20 m/s: ±(1.5% of rdg. + 0.3 m/s) >20 m/s: ±(3% of rdg. + 0.3 m/s) | |
Air temperature measuring range | -20 … 60 °C / -4 … 140 °F | |
Air temperature accuracy | ±0.6 °C | |
Air temperature resolution | 0.1 °C / °F | |
Humidity measuring range | 0.1 … 99.9 % r.H. | |
Humidity accuracy | ±3 % r.H. (at 25 °C / 77 °F and 10…90 % r.H.) else: ±5 % r.H. | |
Humidity resolution | 0.1 % r.H. | |
Temperature response time | 60 seconds | |
Humidity response time | 60 seconds | |
LCD update | 1 x per second | |
Wet bulb temperature display | -20 … +59.9 °C / -4 … 139.8°F | |
Dew point temperature display | -5 … +59.9 °C / 23 … 139.8°F | |
Volume flow display | 0 … 99999 m³/min | |
Volume flow resolution | 0.1 m³/min (0…9999,9 m³/min) 1 m³/min (10000…99999 m³/min) | |
Automatic shutdown | after 20 minutes of inactivity | |
LCD size | 32.5 x 54 mm / 1.28 x 2.13″ (H x W) | |
Power supply | 4 x 1.5 V AAA batteries | |
Operating conditions | 0 … +50 °C / 32 … 89.6°F, <80 % r.H. | |
Storage conditions | -10 … +50 °C / 14 … 89.6°F, <90 % r.H. | |
Dimensions | 269 x 106 x 51 mm / 10.6 x 4.1 x 2.0″ | |
Weight | ca. 200 g / 7 oz |
