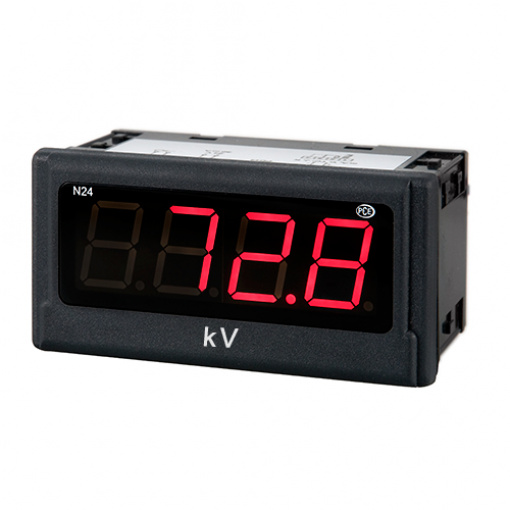

Panel Indicator PCE-N24H

The digital panel meter PCE-N24H is designed to measure and display direct current and DC voltages. The option of arbitrary scaling of the input signal allows multiple applications of the digital panel meter PCE-N24H. Due to a large 4-digit LED the measured values are always clearly readable at the digital panel meter PCE-N24H. By means of the programming adapter PCE-PD14 you can also configure the settings of the digital panel meter on a computer, or read out the measured data. The solid synthetic enclosure of the digital panel meter PCE-N24H provides a good protection even at locations with rough environmental conditions.

General Technical Specifications of the Digital Panel Indicator PCE-N24H
Input (arbitrary)	± 100 V DC ± 250 V DC ± 400 V DC0 … 100 V DC 0 … 250 V DC ±1 A DC ± 5 A DC
Accuracy	± (0.2 % FS + 1 dgt.)
Internal resistance	10 Ω ± 1 %
Scaling	2-point-scaling
Display	4-digit, 7-segments, LED, digit height: 20 mm
Display range	-1999 … 9999
Power Source for Sensor (arbitrary)	24 V DC, max. 30 mA
Surrounding temperature	During Operation: -10 °C … +55 °C Storage: : -25 °C … +85 °C
Diameters	96 mm x 48 mm x 64 mm
Size of switch board	92 mm x 45 mm (according to DIN)
Power Source (arbitrary)	24 V AC 110 V AC 230 V AC 85 … 253 V AC/DC 20 … 40 V AC/DC
Power Consumption of sensor (arbitrary)	24 V / 30 mA
Protection Class	Front: IP 65
Weight	< 200 g
Assembly	Mounting clips with clamp screws, Connection via plug board
Enclosure	Solid synthetic enclosure
