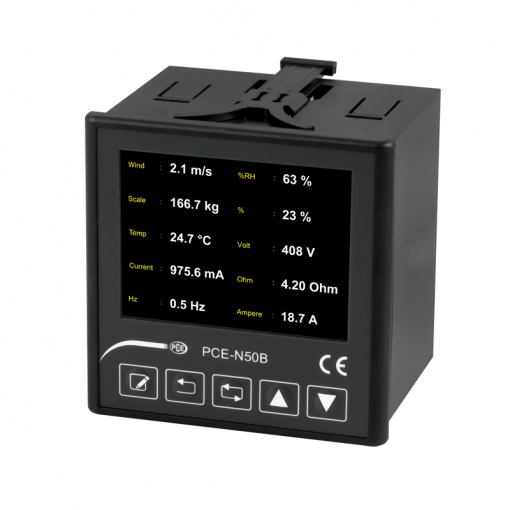

Panel Indicator PCE-N50B
Digital built-in display for 10 slave devices / 3.5″ graphic LCD / 90.5 x 90.5 mm (3.6 x 3.6 in) Panel Cutout / Single or Multiple Display / IP65
Digital built-in display for 10 slave devices / 3.5″ graphic LCD / 90.5 x 90.5 mm (3.6 x 3.6 in) Panel Cutout / Single or Multiple Display / IP65
The panel indicator has a RS485 Modbus interface. This digital Modbus built-in display can display the measured data of up to 10 slave devices or registers. As a built-in display, the Modbusmaster has a 3.5″ LCD display.
Here individual measured values and also several measured values can be displayed simultaneously. The digital panel is mounted in a 90.5 x 90.5 mm / 3.6 x 3.6 in panel cut-out. The text before the measured value can be set individually for each query register in the digital Modbus installation display. The front of the built-in display is protected to IP 65.
– Modbus RTU Master
– 3.5″ LCD display
– 10 registers / slave devices can be queried
– Baud rate individually adjustable
– Further power supply area
– Setting via buttons
– 3.5″ LCD display
– 10 registers / slave devices can be queried
– Baud rate individually adjustable
– Further power supply area
– Setting via buttons
Interface | RS 485 Modbus RTU Master |
Number of slave devices / registers | 10 |
Operating conditions | 0 … 50°C / 32 … 122°F, max 80% RH |
Storage conditions | -25 … 70°C / -13 … 158°F, max. 80% rh |
Degree of protection | Front: IP65 |
Rear: IP20 | |
Power supply | 90 … 250V AC |
Input | Max. 7 VA |
Connections | Screw |
Voltage supply: max. 2.5 mm² | |
Signal input: max. 1.5 mm² | |
Panel cut | 90.5 x 90.5 mm / 3.6 x 3.6 in |
Dimensions | 96 x 96 x 81 mm / 3.8 x 3.8 x 3.2 in |
Weight | About 400 g / < 1 lb |
