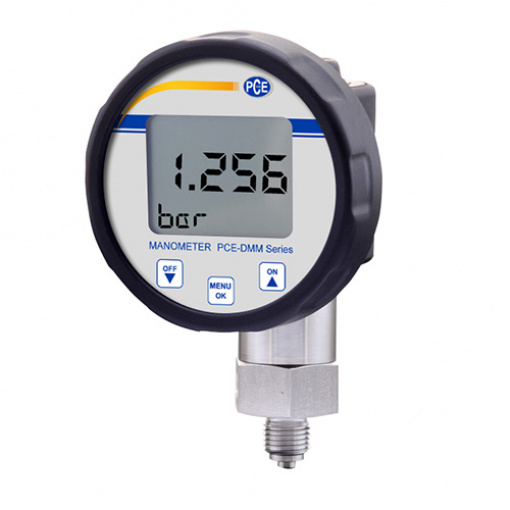

Pressure Indicator PCE-DMM 20

The pressure indicator PCE-DMM 20 has a two-line display. The pressure indicator can represent pressures up to 600 bar, relative or absolute. The parts of the pressure indicator PCE-DMM 20 that can come into contact with liquid are made of stainless steel. As a result, the indicator is used, for example, for water testing and laboratory technology. The housing of the pressure indicator can be rotated, so that even under difficult conditions the display is easy to read. The digital pressure indicator is powered by two 1/2 AA lithium batteries. These ensure a standby period of up to 1.5 years. In addition to the display of the current measured value, the pressure indicator can store the maximum and minimum measured value. To preserve battery life, the display turns off after a time set by the user.

– To 600 Bar
– Relative pressure and absolute pressure measurement
– Max-min function with reset
– 2-line backlit display
– Various units
– Stainless steel diaphragm

Nominal pressure relative inbar	0.1	0.16	0.25	0.40	0.60	1		1.6	2.5	4	6
Nominal pressure absolute in�bar				0.40	0.60	1		1.6	2.5	4	6
Overpressure in bar	0.5	1	1	2	5	5		10	10	20	40
Burst pressure in bar	1.5	1.5	1.5	3	7.9	7.5		15	15	25	50
Nominal pressure relative / absolute in bar	10	16	25	40	60	100		160	250	400	600
Overpressure in bar	40	80	80	108	210	210		600	1050	1050	1250
Burst pressure in bar	50	120	120	210	420	420		1000	1250	1250	1250
Negative pressure	-1 … 0 bar; overload: 5 Bar; burst pressure: 7.5 Bar
Vacuum resistance	P > 1 bar: unrestricted
General Specifications
Accuracy							> 0.4 Bar:< ± 0.125% FSO < 0.4 Bar: < ± 0.25% FSO
Measuring rate							1/s
Long term stability							< ± 0.1% FSO
Media							Fuels, oils, gases, water
Temperature ranges							Fluid: -20 … 85°C / -4 … 185°F Environment: -20 … 70°C / -4 … 158°F Storage: -30 … 80°C / -22 … 176°F
Pressure port / housing							Stainless steel�1.4404
Seal							FKM
Diaphragm							Stainless steel�4.4435
Parts exposed to liquid							Pressure port, seals, diaphragm
Display							LC display
Power supply							2 x 3.6V lithium battery (1/2 AA)
Battery life							1.5 years standby
Protection							IP65
Process connection (selectable)							G 1/2″ G 1/4″ 1/4″ NPT 1/2″ NPT
Weight							ca. 300 g / < 1 lb
