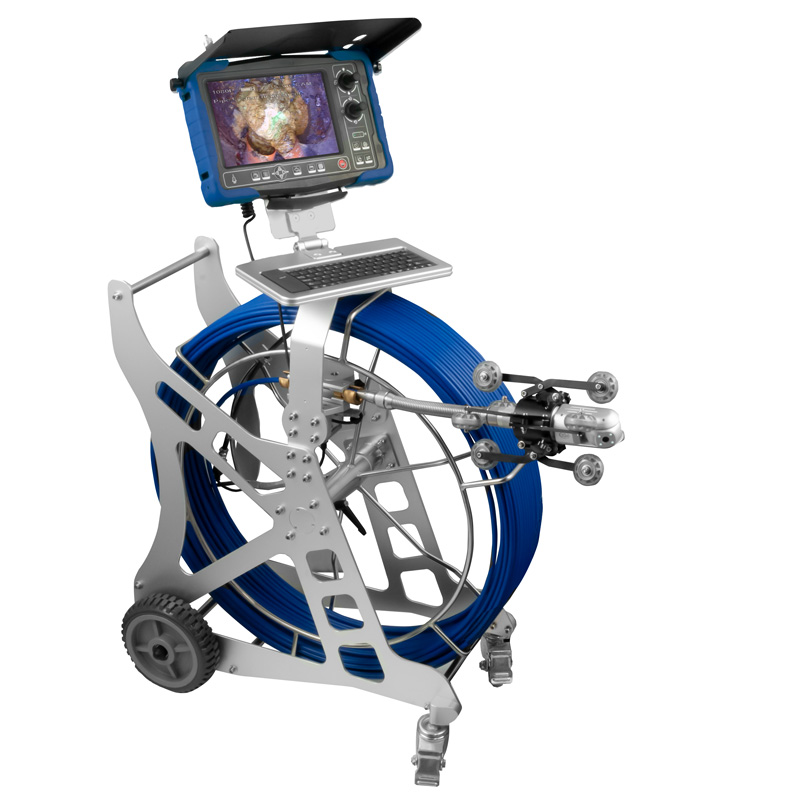

– 60 m / 196.9 ft channel camera
– With cable cars
– Large display
– Text input in the picture and video possible
– Motorized camera
– Engine focus
– Locator function
– ø9.5 mm fiber optic cable
Camera head diameter � | 60 mm / 2.4 in |
Head rotation | Horizontal: 360° |
Vertical: 180° | |
Cable length | 60 m / 196.9 ft |
Sight depth | 20 … 100 cm |
Perspective | 105° |
Pipe diameter from / to � | 80 … 1200 mm / 3.1 … 47.2 in |
Lighting | 4 x LED (dimmable) |
White balance | Automatically |
Image sensor | 1 / 2.9″ Sony CCD |
1920 x 1080 pixels | |
Display | 10.1″ LC display |
1280 x 800 pixels | |
Interface | USB 2.0 |
HDMI | |
Memory option | Video (AVI), Photo (JPEG) and Sound |
Image memory | SD card up to 256 GB |
Video output format | PAL 1080P, 720P, CVBS |
NTCS 1080P, 720P, CVBS | |
Menu navigation | Multilingual |
Length measurement | 0 … 60 m / 0 …196.9 ft |
Data entry | Possible by keyboard |
Operating conditions | -10 … 50°C / 14 … 122°F, 30 … 90% rh |
Storage conditions | -20 … 60°C / -4 … 140°F, 30 … 90% rh |
Power supply | Power supply 110V … 240V AC / 13.5V / 5 A DC |
Li Ion battery 12V / 6000-mAh | |
Protection class | Camera head: IP68 |
Dimensions | Complete: 87.5 x 97.8 x 40.6 cm |
Camera head: 60 x 146 mm / 2.4 x 5.7 in (total length: 360 mm / 14.2 in) | |
Weight | About 20 kg / 44.1 lbs |
