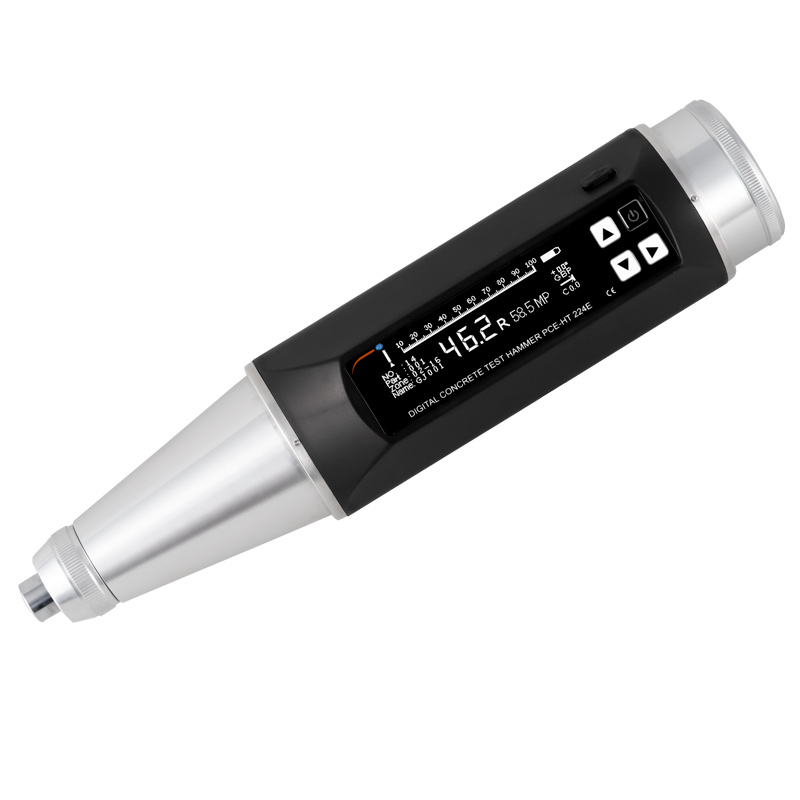

NDT Tester – Hardness Tester PCE-HT 224E with Digital Display

The NDT Tester is a measuring tool for testing the strength of concrete. The NDT Tester measures strength according to the Schmidt principle. According to this measurement method, the quality of concrete can be measured with the NDT Tester. Thus, the NDT Tester finds its essential application in the construction and in the construction sector. The NDT Tester is also suitable for testing the hrdness of rolled paper.  The built-in mechanism on the hardness tester always ensures the same impact energy of 2.207 Nm.

In addition to testing concrete, the NDT Tester can also store measured data. The stored measurement data can be transferred from the NDT Tester to a PC after a measurement run. For this, the mini-USB interface is available on the NDT Tester. The evaluation of the measurements from the NDT Tester is carried out with the supplied PC software.

The NDT Tester displays measurements Rebound Value and can display force in PSI, MPa, kgF/cm², or N/mm². The NDT Tester can be setup to measure at test angles of downward(-90°), downward(-45°), horizontal (0°), upward(45°), or upward(90°).
