Gas Detector for measurement of ozone / Many different sensors optional /
Sensor OZU included/ / Broad range of application / Replaceable sensor head / Optional sensor for temperature and humidity
Sensor OZU included/ / Broad range of application / Replaceable sensor head / Optional sensor for temperature and humidity

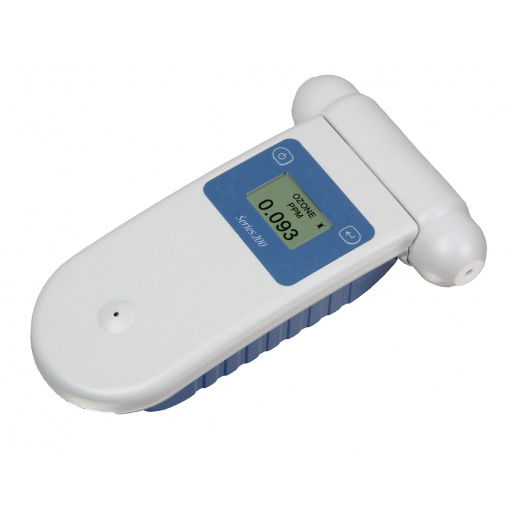

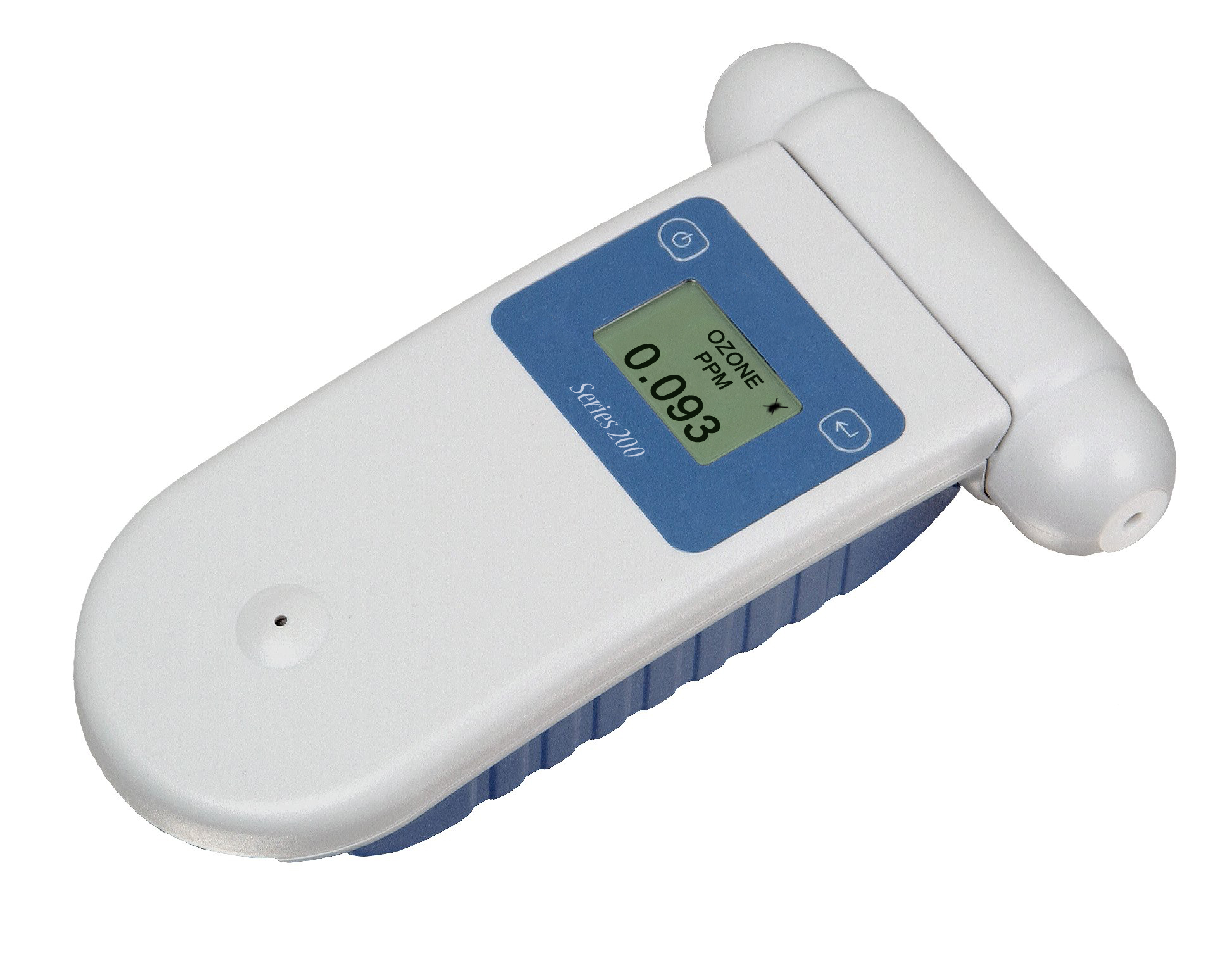

The Gas Detector AQ-200 is a highly accurate instrument for measuring ozone concentrations in the air. The Gas Detector can be equipped with four different heads that vary in their measurement range. Furthermore, the Gas Detector has sensor heads for other gases available, which are automatically recognized when plugged into the device. Thus, you can use the Gas Detector in many different areas. The possibilities of the Gas Detector extend the use of ozone in your processes for bleaching oils, greases, wax, paper, synthetic fibers, cellulose or textiles,within the paper, textile, or lubricant production industries. Another field of application for the Gas Detector is in cleaning, disinfection and sterilisation of swimming pools, water treatment facilities or after fire damage or water damage. With a head for lower measurements of up to 0.150 ppm, you can measure ozone concentrations that have a negative effect on the mental state of humans. Thanks to the leading GSS technology of the sensors, the Gas Detector is not only high precision, it has a long lifespan. The unique possibility to refresh the sensors makes their maintenance more economical than the maintenance of other types of sensors. Depending on the model, the measured concentrations may be written to the internal memory�of the Gas Detector�via an analog interface with a 0… 5V output, or the output is transferred via a USB interface to a PC. Similarly, a remote kit is available as an option, allowing the Gas Detector to take measurements in a secure room while the sensor is connected via cable to the Gas Detector. The measured concentrations are displayed in ppm or mg / m³ on the LCD display.
– High accuracy and functionality
– Easy to operate and maintain
– Fast response time
– Interchangeable sensor heads
– LCD display
– Battery operation
– Sensor calibration function
– Max. / Min. / Average function
– Easy to operate and maintain
– Fast response time
– Interchangeable sensor heads
– LCD display
– Battery operation
– Sensor calibration function
– Max. / Min. / Average function
Technical Specification of the Ozone Meter | |||||
Model 200 Series | |||||
Measurement units | ppm or mg/m³ | ||||
Functions | Max, Min, Average, Average 15 min | ||||
Sensor head | Removable / Replaceable, OZU included | ||||
Display status indicator | Battery, sensor, standby | ||||
Calibration function | Zero calibration | ||||
Model 200, 300 and 500 Series | |||||
Power supply | 12V DC | ||||
Rechargeable battery | Lithium-Polymer 12V DC / 2700 mAh | ||||
Charger | 12.6V 2 A | ||||
Charging voltage | 12.6V | ||||
Charging time | 2… 3 hours | ||||
Lifecycle | > 500 charges | ||||
Housing | PC & ABS / IP20 & NEMA 1 | ||||
Dimensions (incl. opt. sensors available) | 7.7 x 4.8 x 2.1 in 195 x 122 x 54 mm | ||||
Weight | < 1 lb / 460 g (with battery) | ||||
Approvals | EN 50082-1: 1997, EN 50081-1: 1992, CE | ||||
You can find the technical data on a variety of sensor heads to the ozone measurement device AQ series below in the “Optional accessories for Gas Detector AQ series”. |
