Phase Power Meter Easycount-1-Schuko-U (1-)

Name: Phase Power Meter Easycount-1-Schuko-U (1-)
SKU: 9526
Availability: BackOrder

Easycount-1-Schuko-U

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Phase Power Meter

รายละเอียดเพิ่มเติม

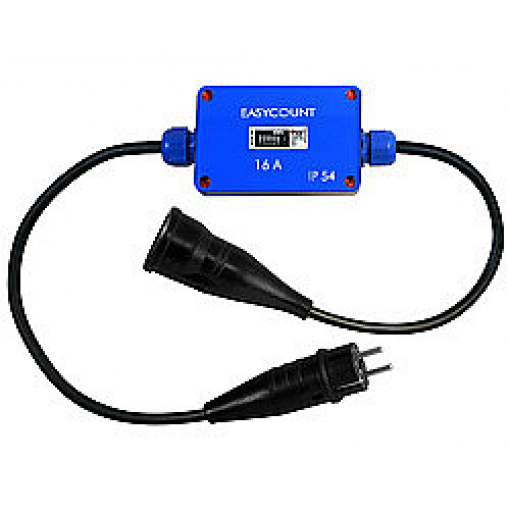

Easycount-1-Schuko-U�1-Phase Power Meter
A/C meter for voltage up to 230 VAC

The Power Meter is an EasyCounter meter of voltage for up to 230 V AC, with a casing protected against water and shock resistant. The Power Meter poles are equipped with male and female connectors. The male and female connectors of the Power Meter are available in different versions (e.g. for Spain, Germany and Austria) with standard plugs or conventional outlets. Other specific connectors for a given country (e.g. England) are available upon request. The Power Meter is ideal for ports, campsites, flea markets, fairs and similar events in places where no fixed electric meter is available.

– Light weight
– Easy use
– Flexible and easy to use everywhere
– Readable display
– ABS stable case
– Conection cables length of 0.50 m
– Possibiity of acquiring different connectors

Technical Specifications
Power imput	230 VAC
Admissible permanent current	16 A
Frequency	50 Hz
Consumption	<0.5 W
Minimum power	6 W
Indication	wheel counter 5 + 1
Resolution	0.1 kWh
Ambient temperature	-20 … +50 ºC
Protection	IP 54
Protection for male and female connectors	IP 44
