Pressure Gauge PCE-DMM 50

Name: Pressure Gauge PCE-DMM 50
SKU: 16360
Availability: BackOrder

PCE-DMM 50

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Pressure Gauge

Pressure�gauge�to 600 bar/ Relative and absolute pressure measurement / ± 0.25% FSOaccuracy

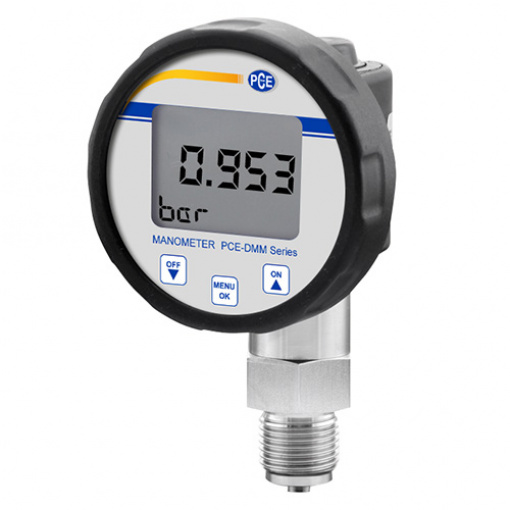

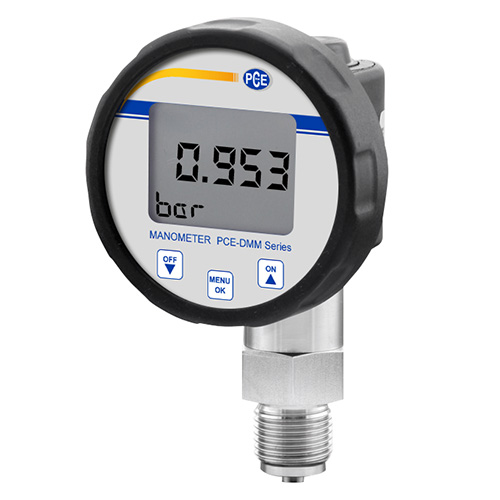

The pressure�gauge PCE-DMM 50 is suitable for stationary and mobile pressure measurement. The pressure�gauge PCE-DMM 50 is used in mechanical and plant engineering, laboratory technology and environmental technology. This�gauge�is battery powered. The measuring range of the pressure�gauge reaches up to 600 bar. Besides the presentation of the measured value, the�gauge saves the maximum and minimum readings. The built-in automatic switch-off can be programmed.

– To 600 Bar
– Relative and absolute pressure measurement
– Max-min function with reset
– 2 backlit display
– Different units
– Ceramic membrane

ยังไม่มีบทวิจารณ์

เฉพาะลูกค้าที่เข้าสู่ระบบ และเคยซื้อสินค้าชิ้นนี้แล้วเท่านั้น ที่เขียนบทวิจารณ์ได้

Nominal pressure relative inbar	0.4	0.6	1	1.6	2.5	4		6	10	16	25
Nominal pressure absolute inbar	–	0.6	1	1.6	2.5	4		6	10	16	25
Overpressure in bar	1	2	2	4	4	10		10	20	40	40
Burst pressure in bar	2	4	4	5	5	12		12	25	50	50

Nominal pressure relative / absolute in bar	40	60	100	160	250	400		600
Overpressure in bar	100	100	200	400	400	600		800
Burst pressure in bar	120	120	250	500	500	650		880
Negative pressure	-1 … 0 Bar; Overload: 4 Bar; Burst pressure: 7 Bar
Vacuum resistance	P > 1 Bar: unrestricted
General Specifications
Accuracy							± 0.25% FSO
Measuring rate							5/s
Long term stability							< ± 0.1% FSO
Media							Fuels, oils oxygen water
Temperature ranges							Measuring material: -20 … 85°C / -4 … 185°F Environment: -20 … 70°C / -4 … 158°F Storage: -30 … 80°C / -22 … 176°F
Pressure port / housing							Stainless steel�1.4404
Seal							FKM
Diaphragm							Ceramic�Al₂O₃
Parts exposed to water							Pressure port, seals, diaphragm
Display							LC Display
Power supply							2 x 3.6V Lithium batteries (1/2 AA)
Battery life							5 years standby
Protection							IP65
Weight							ca. 300 g / < 1 lb
