Electromagnetic Radiation Detector PCE-EM 29
PCE-EM 29
Availability : กรุณาติดต่อสอบถาม

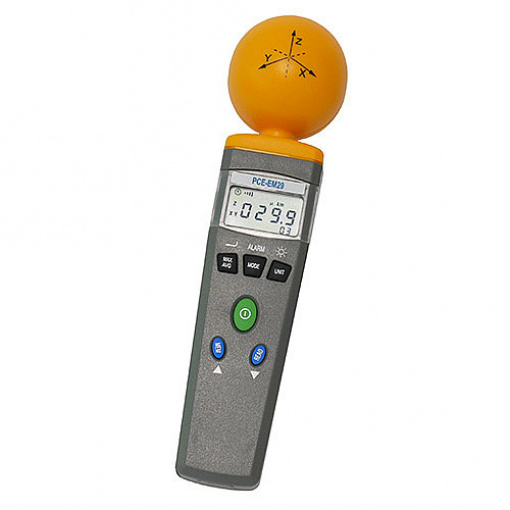

PCE-EM 29 Electromagnetic Radiation Detector
Detects electromagnetic fields (EMFs) and radio frequencies (RFs)
PCE-EM 29 is a portable handheld electromagnetic radiation detector with a spherical triaxial (3-axis) three-dimensional (3D) isotropic sensor used to measure electromagnetic fields (EMFs) as well as radio frequencies (RFs). This easy-to-use battery-powered RF meter features a large 4-digit LCD screen and an adjustable value limit with acoustic alarm functionality.
PCE-EM 29 is ideal for monitoring electrical transformers and wireless systems such as wifi, wireless LAN, GSM and GPS. The EMF detector also aids in evaluating radiation produced by computer screens, televisions, microwaves and electrical installations.
– Frequency range: 50 MHz to 3.5 GHz
– Measures EMF of 5G cellular Low-band and Mid-band
– Measurement range: 38 mV/m to 11 V/m
– Accuracy: ±1.0 dB (50 MHz to 1.9 GHz), ±2.4 dB (1.9 GHz to 3.5 GHz)
– Displays units in mV/m, V/m, µgA/m, mA/m, µgW/m² or mW/m²
– Calculates average value and stores up to 99 readings to memory
| Frequency range | 50MHz to 3.5GHz |
| Sensor type | Electrical field (E) |
| Measurements | 3 dimensions, isotropic |
| Measurement range | 38 mV/m to 11 V/m |
| Range selection | Automatic |
| Response time | 1 s (up to 90% of value) |
| Units of measurement | mV/m , V/m , µgA/m , mA/m , µgW/m² , mW/m² |
| Resolution | 0.1mV/m; 0.1 µgA/m; 0.01 µgW/m² |
| Absolute error (with 1V/m and 50MHz) | ±1.0dB |
| Accuracy (depending on the frequency) | ±1.0dB (50MHz to 1.9GHz) ±2.4dB (1.9GHz to 3.5GHz) |
| Isotropic deviation | ±1.0dB (for frequencies >50 MHz) |
| Over range maximum value | 4.2 W/m² (40 V/m) |
| Deviation owing to temperature | ±1.5dB |
| Display | 4-digit LCD |
| Refresh rate | Every 400ms |
| Limit | Adjustable |
| Alarm | Acoustic signal to indicate over range limit exceeded |
| Calibration | Adjustable |
| Calculates average value | Adjustable from 4s to 15min |
| Memory | 99 readings (can be shown on the display) |
| Functions | Current, maximum and average value |
| Power | 9V battery |
| Weight | 350g / 0.78 lb (with battery) |
