PCE-EM 888Relative Humidity Metery
Portable handheld multifunctional digital device measures wind speed, volumetric air flow, temperature, relative humidity, light and barometric pressure

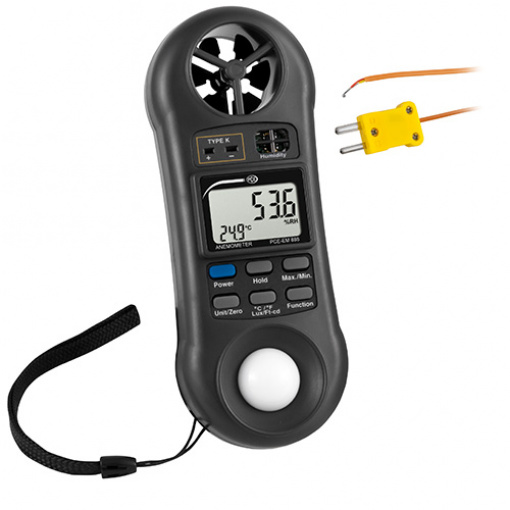

PCE-EM 888 is a portable handheld relative humidity meter ideal for monitoring environmental conditions and the performance of heating, ventilation and air conditioning (HVAC) systems. This multifunctional digital device is used to measure wind speed, volumetric air flow, temperature, relative humidity, light and barometric pressure.
Due to its compact and lightweight design, this relative humidity meter is a true pocket weather station that can be used almost anywhere. With just the touch of a button, measurements are displayed on the easy-to-read 8 mm (0.32″) LCD screen with backlight. The device also features MIN/MAX functionality. Thus, this user-friendly relative humidity meter has many practical applications for monitoring weather conditions outdoors at construction job sites, farms, marinas and more. In addition, this multi-purpose meter can be used for indoor air quality (IAQ) monitoring.
A high-precision type K thermocouple sensor enables fast temperature measurements. The impeller ensures accurate wind speed measurements. While measuring the wind speed, the device always simultaneously measures the temperature of the air flow. The monolithic silicone-based pressure sensor allows for measurement of the barometric or atmospheric pressure. Besides a relative humidity sensor, a light sensor completes the range of measuring capabilities for this multi-use tool.
– High accuracy
– MIN/MAX function
– Compact, portable design
– Includes type K thermocouple sensor Tmax 200°C or 392°F
– Easy-to-read 8 mm / 0.32 in LCD screen with backlight
Wind speed | |
Measuring range | 80 … 5910 ft / min 0.4 … 30 m / s 1.4 … 108 km / h 0.9 … 67 mph 0.8 … 58.9 knots |
Resolution | 1 ft / min 0.1 m / s 0.1 km / h 0.1 mph 0.1 knot |
Accuracy | < 20 m / s: ± 3% of range > 20 m / s: ± 4% of range |
Volumetric air flow | |
Measuring range | Max. 54000 CMM Max. 1908400 CFM |
Resolution | 0.0001 … 1 CMM 0.001 … 100 CFM |
Accuracy | – |
Relative humidity | |
Measuring range | 10 … 95% RH |
Resolution | 0.1% RH |
Accuracy | < 70% RH ± 4% of range > 70% RH ±(4% of range + 1.2% RH) |
Air temperature | |
Measuring range | 0 … 50°C / 32 … 122°F |
Resolution | 0.1°C / 0.18°F |
Accuracy | ± 1.2°C / ± 2.2°F |
Light | |
Measuring range | 0 … 2000 lux 1800 … 20000 lux 0 … 204 ft-cd 170 … 1860 ft-cd |
Resolution | 1 lux 10 lux 0.1 ft cd 1 ft cd |
Accuracy | ± 5% of range ± 8 digits |
Type K thermocouple sensor | |
Measuring range | -100 … 1300°C / -148 … 2372°F |
Resolution | 0.1°C / 0.18°F |
Accuracy | ± (1% of range + 1°C / 1.8°F) ± (1% of range + 2°F / 3.6°F) |
Barometric pressure | |
Measuring range | 10 … 999.9 hPa 1000 … 1100 hPa 7.5 … 825 mmHg 0.29 … 32.48 inHg |
Resolution | 0.1 hPa 1 hPa 0.1 mmHg 0.01 inHg |
Accuracy | ± 1.5 hPa ± 2 hPa ± 1.2 mmHg 0.05 inHg |
General specifications | |
Display | 8 mm / 0.32 in LCD |
Measurement functions | Air speed / velocity Volumetric air flow Relative humidity Air temperature Light Atmospheric / barometric pressure Thermocouple type K |
Operating conditions | 0 … 50°C (32 … 122°F) / Max. 80% RH |
Power supply | 1 x 9V battery |
Current consumption | Approx. 6.2-mA |
Weight | Approx. 160 g / < 1 lb |
Dimensions | 156 x 60 x 33 mm / 6.2 x 2.4 x 1.3 in |
