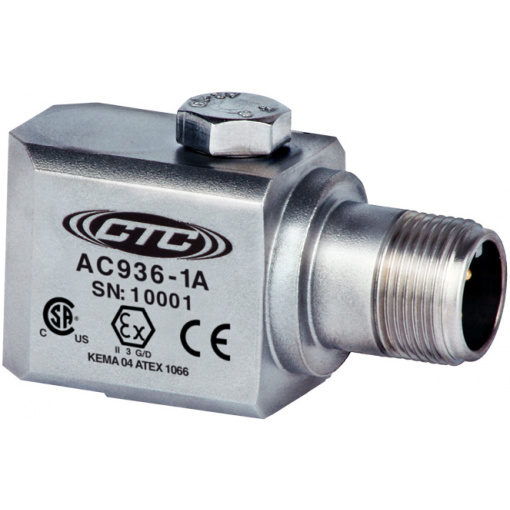

AC936 – Class I, Division 2 / Zone 2 Accelerometer, For Use In “Non-Arcing, Non-Sparking” Environments, Side Exit Connector, 100 mV/g Low Capacitance

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 30-516,000 CPM
• Dynamic Range: ± 50 g, peak
• Power Requirements Voltage Source: 18-28 VDC
• Temperature Range: -65 to 257°F
• Case Material: 316L Stainless Steel
• Connector: 2 Pin MIL-C-5015
• Max Temp: 125°C

Options

AC936-1A�
Class I, Division 2, non-arcing, non-sparking accelerometer, low capacitance, 100 mV/g, side connector;

AC936-2C�
Class I, Division 2, non-arcing, non-sparking accelerometer, low capacitance, 100 mV/g, side exit integral cable, 0 ft.

AC936-3C�
Class I, Division 2, non-arcing, non-sparking accelerometer, low capacitance, 100 mV/g, side exit armor jacketed integral cable,; Twisted, shielded pair, stainless steel armor, red Teflon® cable, .270″” OD; 0 ft. overall length;
