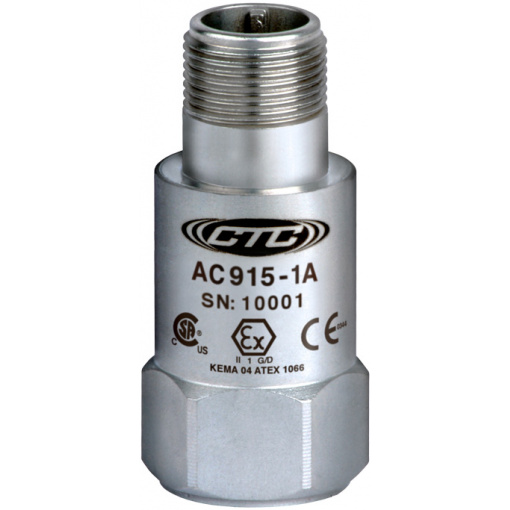

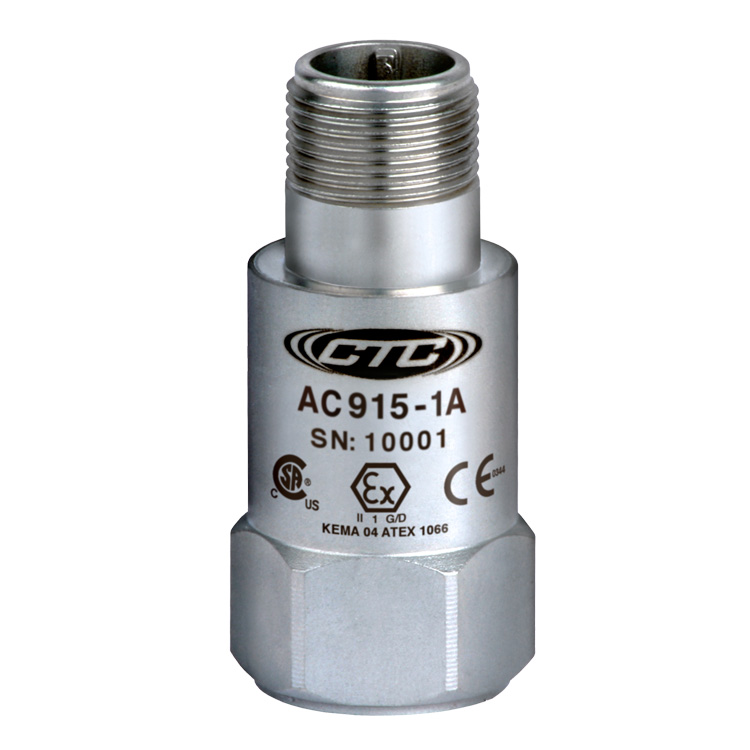

AC915 – Intrinsically Safe Accelerometer, Top Exit Connector / Cable, 100 mV/g Low Capacitance

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 30-900,000 CPM
• Dynamic Range: ± 50 g, peak
• Power Requirements Voltage Source: 18-28 VDC
• Temperature Range: -40 to 250°F
• Case Material: 316L Stainless Steel
• Connector: 2 Pin MIL-C-5015
• Max Temp: 125°C

Options

AC915-1A
Intrinsically safe accelerometer, low capacitance, 100 mV/g, top connector;

AC915-3C
Intrinsically safe accelerometer, low capacitance, 100 mV/g, top exit armor jacketed integral cable

AC915-9C�
Intrinsically safe accelerometer, 100 mV/g, low capacitance, top exit blue integral cable
