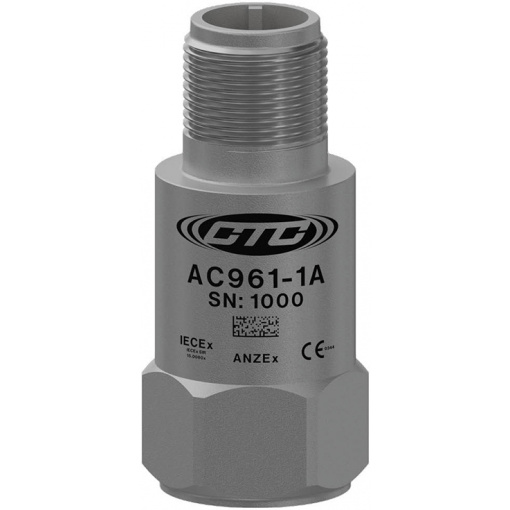

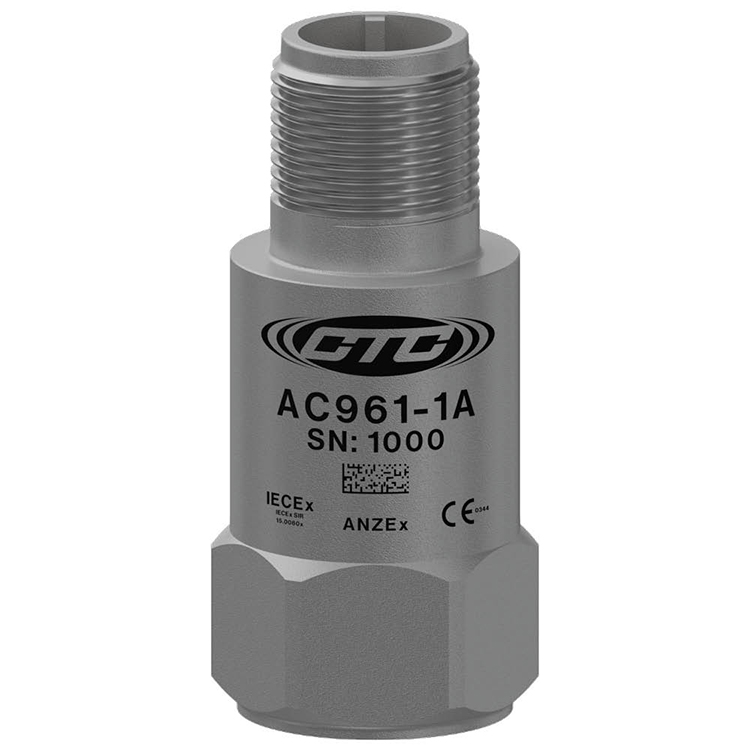

AC961 – IEC Certified (IECEx), Intrinsically Safe Accelerometer, Top Exit Connector / Cable, 10 mV/g Low Capacitance

• Sensitivity: 10 mV/g
• Frequency Response (±3dB): 72-900,000 CPM
• Dynamic Range: ± 500 g, peak
• Power Requirements Voltage Source: 18-28 VDC
• Temperature Range: -40 to 250°F
• Case Material: 316L Stainless Steel
• Connector: 2 Pin MIL-C-5015
• Max Temp: 125°C

Options

AC961-1A�

Low Capacitance, IEC Certified (IECEx/ANZEx), Intrinsically Safe Accelerometer, Top Exit Connector/Cable, 10 mV/g

AC961-3C
Low Capacitance, IEC Certified (IECEx/ANZEx), Intrinsically Safe Accelerometer, Top Exit Connector/Cable, 10 mV/g, Top Exit Armor Jacketed Integral Cable

AC961-9C�
Low Capacitance, IEC Certified (IECEx/ANZEx), Intrinsically Safe Accelerometer, Top Exit Connector/Cable, 10 mV/g, Top Exit Integral Cable
