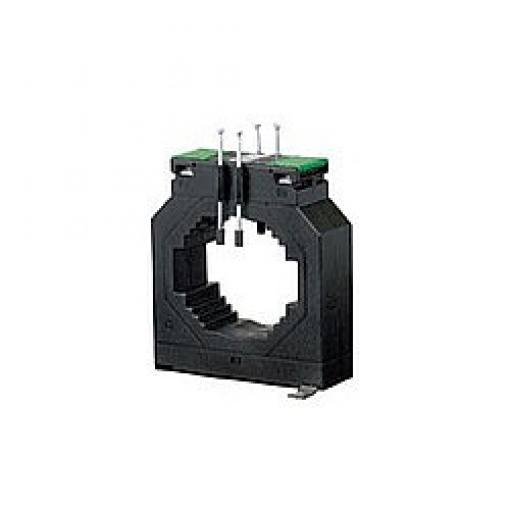

Current Transformer PCE-LCTB 104/60 (45)

Current Transformer PCE-LCTB 104/60 (45) Series for measuring alternating currents up to 1600 A

The current transformers of the PCE-LCTB 104/60 (45) series are used when alternating currents in circuits are too high to be detected directly by measuring devices. The current transformer converts the primary current into a proportionally reduced secondary current, which can be processed by a measuring device. In addition, the current transformer protects connected measuring devices from excessive voltages. The current transformers of the PCE-LCTB 104/60 (45) series can detect primary currents from 100 A to 1600 A depending on the design and convert these into a 1 A or 5 A secondary current. In addition, between the accuracy classes, 1 / 0.5 / 0.2 / 0.2s can be selected.

– Primary winding (input): 100 A … 1600 A
– secondary (output): 1 A / 5 A
– System voltage: max. 720 V
– Accuracy grades: 0.2s / 0.2 / 0.5 / 1
– Frequency: 50 Hz
– IEC / EN 60044-1, BS 3938, IS 2705-1 standards
– Easy installation
– Compact dimensions
