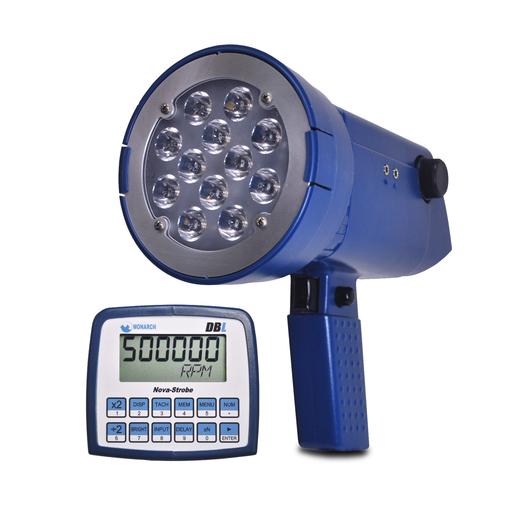

The Monarch Nova-Strobe LED family of rugged industrial stroboscopes provides an extremely bright, uniform light output for performing stop motion diagnostic inspection and RPM measurements. The twelve LED light source is extremely efficient which means long battery life and continuous cool operation. A wide operating range of 30-500,000 flashes per minute covers all applications.
FEATURES
- Flash rates from 30 to 500,000 flashes per minute
- Diagnostic inspection and RPM checks
- Digital LCD backlit display
- Tripod mounting bushing (1/4-20) in the handle
- CE marked and RoHS compliant
- Flash rate may be displayed in Flashes Per Minute (FPM) or Flashes per Second (Hz)
- Adjustable brightness control
- Lightweight industrial design
- 12-button keypad makes entering flash rates extremely quick (DBL, PBL models)
- Individual input and output TTL jacks (1/8 inch phone) provides power to remote sensors and allows “daisy-chaining” of multiple strobes;
- Tachometer mode allows accurate speed measurement up to 500,000 RPM using external sensors (DBL, PBL models)
- Brightest portable LED strobes available
- NIST Certificate of Calibration�included with DBL and PBL models
Benefits of LED
- Energy efficient with long battery life (8-10 hours typical)
- Extremely bright, uniform light output
- Completely silent
- Cool operation
- No lamp replacements
- Extremely high flash rates (up to 500,000 FPM)
Compare: | BBL Basic | DBL Deluxe | PBL Phaser |
Flash Range (FPM/RPM) | 30-500,000 | 30-500,000 | 30-500,000 |
Display | 6-digit numeric and 5-digit alphanumeric LCD | 6-digit numeric and 5-digit alphanumeric LCD | 6-digit numeric and 5-digit alphanumeric LCD |
Accuracy/Resolution | 0.01% | 0.004% of setting or +/- 1 lsd/0.01 FPM | 0.004% of setting or +/- 1 lsd/0.01 FPM |
Light Output | 4200 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, max, light output: 27,000 Lux | 4200 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, max, light output: 27,000 Lux | 4200 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, max, light output: 27,000 Lux |
Flash Duration | Adjustable to 14 degrees/3000µsecs max | Adjustable to 14 degrees/3000µsecs max | Adjustable to 14 degrees/3000µsecs max |
Light Source | 12 LED array | 12 LED array | 12 LED array |
Color Temperature | Approx. 6200°K | Approx. 6200°K | Approx. 6200°K |
External Trigger (in/out) | TTL (24Vdc max) input; provides 3.3 Vidc TTL output | TTL (24Vdc max) input; provides 3.3 Vidc TTL output | |
Tachometer Mode | N/A | 5-500,000 RPM (use with optional remote sensor) | 5-500,000 RPM (use with optional remote sensor) |
Programmable Memory | Yes | Yes | Yes |
Internal Phase Shift: | N/A | Yes | Yes |
Phase Delay | 0.1 to 359.9 degrees | 0.1 to 359.9 degrees | |
Time Delay | N/A | 0.01 to 1000 msec. | 0.01 to 1000 msec. |
Virtual RPM (slow motion) | N/A | 0-200 VRPM | 0-200 VRPM |
Operating Time | 8-10 hours typical @ 1800 FPM | 8-10 hours typical @ 1800 FPM | 8-10 hours typical @ 1800 FPM with batteries or continuous using power supply |
Power Supply | Internal NiMH rechargeable batteries with 115/230 50/60Hz recharger | Internal NiMH rechargeable batteries with 115/230 50/60Hz recharger | Internal NiMH rechargeable batteries with 115/230 50/60Hz recharger or continuous using 115/230 50/60HZ Vac power supply/recharger |
Weight | 1.9 lbs. (860g) | 1.9 lbs. (860g) | 1.9 lbs. (860g) |
Size ( LxWxH) | Body:9″ x 3.66″ x 3.56″ (229 x 93 x 90mm); Reflector Housing: 4.8″ (122mm) dia.; Handle: 4.254″ (108mm long) | Body:9″ x 3.66″ x 3.56″ (229 x 93 x 90mm); Reflector Housing: 4.8″ (122mm) dia.; Handle: 4.254″ (108mm long) | Body:9″ x 3.66″ x 3.56″ (229 x 93 x 90mm); Reflector Housing: 4.8″ (122mm) dia.; Handle: 4.254″ (108mm long) |
