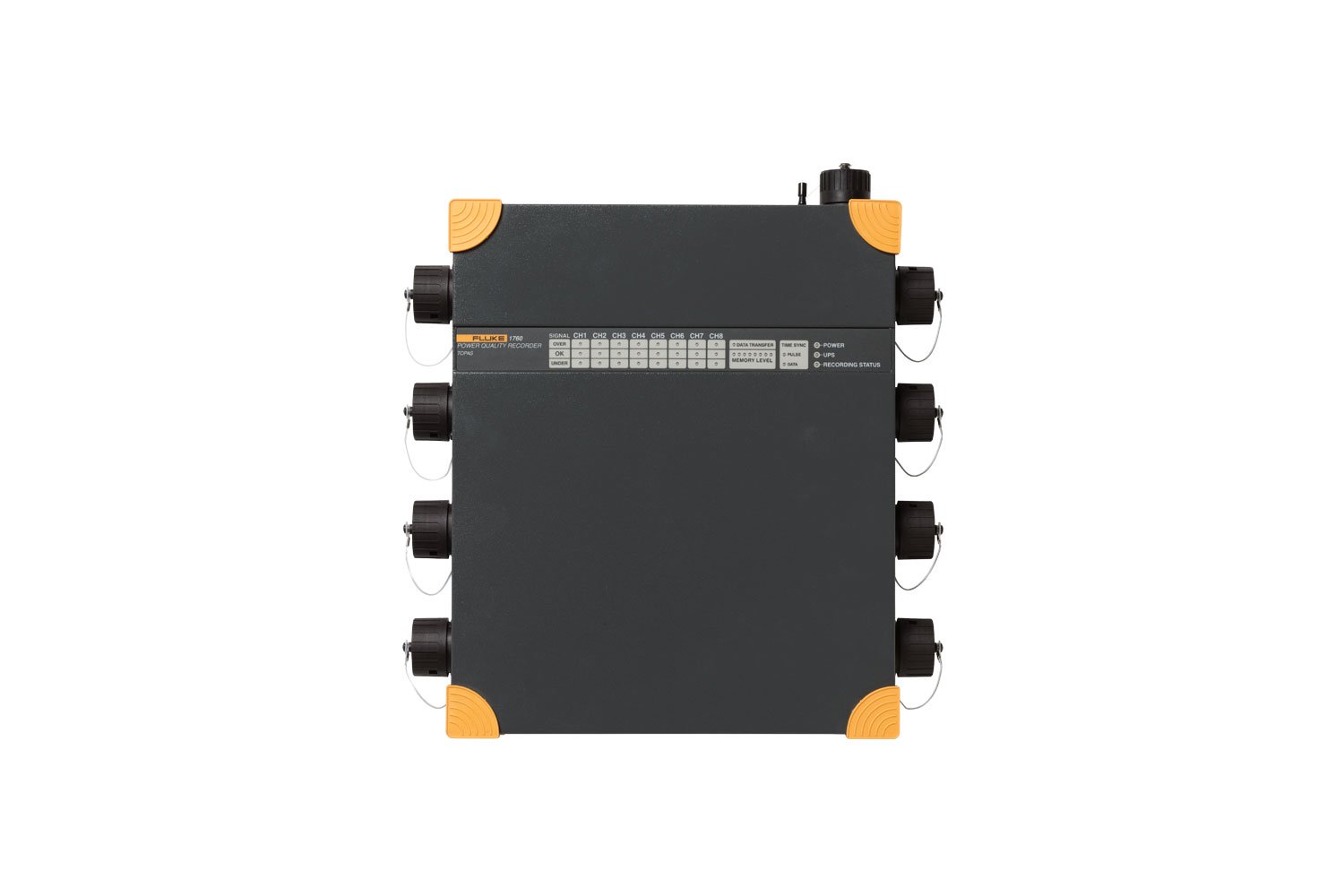

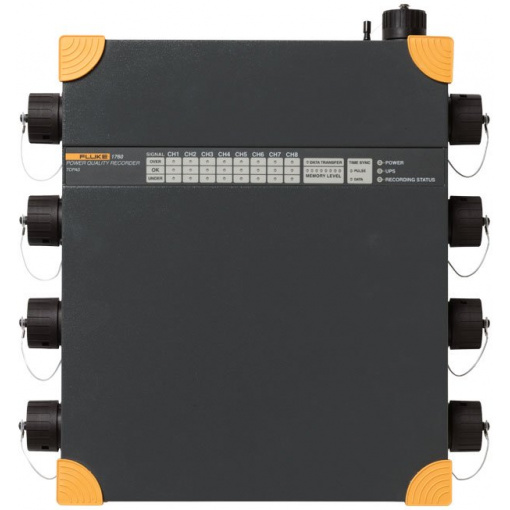

FLUKE-1760 TR INTL Three-Phase Power Quality Recorder

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: Fluke 1760TR Three-Phase Power Quality Recorder

Overview of Measurement Functions
Statistical evaluation	Power quality statistics according to EN50160 and DISDIP tables like ITIC, CEBEMA, ANSI
Event list	Dips, swells and interruptions are detected and stored in the event list. Also any trigger which fires generates an event added to this list.
	The Event list shows the exact time when the event occurred as well as the duration and magnitude. Sorting by several attributes of these events is possible to select one for further root cause analysis.
	RMS values, transients and fast transients can be stored if a trigger fires
Continuous recording	Fluke 1760 records rms values together with corresponding minimum and maximum values for: • Voltage • Current • Power P, Q, S • Power Factor • kWh • Flicker • Unbalance • Frequency • Harmonics/Interharmonics continuously with the following time aggregations: Day, 10 min, Free Interval, e.g.: 15 min, 2 h<
Triggered recordings	rms	Aggregation time is adjustable between 10 ms (1/2 cycle), 20 ms (1 cycle), 200ms (10/12 cycles) or 3 sec (150/180 cycles).
		Calculating rms values, Harmonics and Interharmonics is performed synchronous to the power frequency.
		Basic aggregation for harmonics and interharmonics is 200ms
	Oscilloscope	Sample rate is 10.24 kHz for all 8 channels
	Fast Transients	Sample rate is selectable from 100 kHz to 10 MHz for channel 1-4 FFT of Fast Transients
Mains signalling	Phases and N-conductor, Voltage and current
Online mode	Variable refresh rate. This feature allows verification of instrument set up and delivers a quick overview of oscilloscope, transients and events.
General Data
Intrinsic uncertainty	refers to reference conditions and is guaranteed for two years
Quality system	developed, manufactured as per ISO 9001: 2000
Environment conditions	Operating temp. range	0°C to +50°C; 32°F to +122°F
	Working temp. range	-20°C to +50°C; -4°F to +122°F
	Storage temp. range	20°C to +60°C; -4°F to 140°F
	Reference temperature	23°C ±2 K; 74°F ±2 K
	Climatic class	B2 (IEC 654-1), -20°C to +50°C; -4°F to +122°F
	Max. operating altitude	2000 m: max. 600 V CAT IV¹, power supply: 300 V CAT III 5000 m: max 600 V CAT III¹, power supply: 300 V CAT II
		1. Depending on sensor
Reference conditions	Environment temperature	23°C ±2 K ; 74°F ±2 K
	Power supply	230 V ±10%
	Power frequency	50 Hz / 60 Hz
	Signal	declared input voltage Udin
	Averaging	10 minute intervals
Housing	Insulated, robust plastics housing
EMC	Emission	Class-A as per IEC/EN 61326-1
	Immunity	IEC/EN 61326-1
Power supply	Range	AC: 83 V to 264 V, 45 to 65 Hz
		DC: 100 V to 375 V
	Safety	IEC/EN 61010-1 2nd edition
		300 V CAT III
	Power consumption	NIMH, 7.2 V, 2.7 Ah
	Battery pack	In case of a power supply failure an internal battery maintains the supply for up to 40 minutes. Afterwards, or in case of discharged accumulators the Fluke 1760 is turned off and continues the measurements with the latest settings as soon as the supply voltage returns. The battery can be replaced by the user.
Display	Fluke 1760 features LED indicators for the status of the 8 channels, phase sequence, power supply (mains or accumulator), memory usage, time synchronization, and data transfer.
	Power LED	Permanent light: normal power supply from mains. OFF: supply via internal accumulator in case of a power failure.
	Channel LEDs 3-color LEDs per channel for	overload condition under load condition
Data memory	2 GB Flash memory
Memory model	Linear
Interfaces	Ethernet (100 MB/s), compatible to Windows® XP, 7 and 8, RS 232, external modem via RS 232
Baud rate for RS 232	9600 Baud to 115 kBaud
Dimensions (H x W x D)	325 x 300 x 65 mm; 2.8 x 11.8 x 2.6 in
Weight	appr. 4.9 kg; 10.8 lbs. (without accessories)
Warranty	1 year
Calibration interval	1 year recommended for Class-A, otherwise 2 years
Signal Conditioning
Range for 50 Hz systems	50 Hz ±15% (42.5 Hz to 57.5 Hz)
Range for 60 Hz systems	60 Hz ±15% (51 Hz to 69 Hz)
Resolution	16 ppm
Sampling frequency for 50 Hz power frequency	10.24 kHz, The sampling rate is synchronized to mains frequency.
Uncertainty for frequency measurements	< 20 ppm
Uncertainty of internal clock	< 1 s/day
Measurement intervals	Aggregation of the interval values as per IEC 61000-4-30 Class-A
	Min-, Max-values	Half cycle, e.g.: 10 ms rms values at 50 Hz
	Transients	Sample rate 100 kHz to 10 MHz per channel
Harmonics	as per IEC 61000-4-7:2002: 200 ms
Flicker	as per EN 61000-4-15:2003: 10 min (Pst), 2 h (Plt)
Measurement Inputs
Number of inputs	8 galvanically isolated inputs for voltage and current measurements.
Sensor safety	up to 600 V CAT IV depending on sensor
Basic safety	300 V CAT III
Nominal voltage (rms)	100 mV
Range (peak value)	280 mV
Overload capacity (rms)	1000 V, continuously
Voltage rise rate	max. 15 kV / µs
Input resistance	1 MΩ
Input capacitance	5 pF
Input filter	Each channel is equipped with a passive low-pass filter, an anti-aliasing filter and a 16-bit A/D converter. All channels are sampled synchronously with a common quartz-controlled clock pulse. The filters protect against voltage transients and limit the signal rise rate, reduce high frequency components and especially the noise voltage above half the sampling rate of the A/D converter by 80 dB, thus achieving very small measuring errors in an exceptionally large amplitude range. This is also valid under extreme operating conditions like transient voltages at the output of converters.
Uncertainties
Uncertainty at reference conditions	Uncertainty including the voltage sensors is in compliance with IEC 61000-4-30 Class-A. All voltage sensors are suitable for DC up to 5 kHz
	With Sensor 1000 V	0,1% at Udin = 480 V and 600 V P-N
	Sensor 600 V	0,1% at Udin = 230 V P-N
Intrinsic uncertainty for harmonics	Class I as per EN 61000-4-7:2002
Reference conditions	23°C ±2 K < 60% rH; 74°F ±2 K < 60% rH
	Warmed up instrument > 3 h
	Power supply: 100 V to 250 V AC
Temperature drift	100 ppm / K
Aging	< 0.05% / year
Common mode rejection	> 100 dB at 50 Hz
Temperature drift	Change of amplification through temperature: < 0.005%/K
Aging	Change of amplification due to ageing: < 0.04%/year
Noise	Noise voltage, input short-circuited: < 40 µV
DC	±(0.2% rdg + 0.1% sensor)
