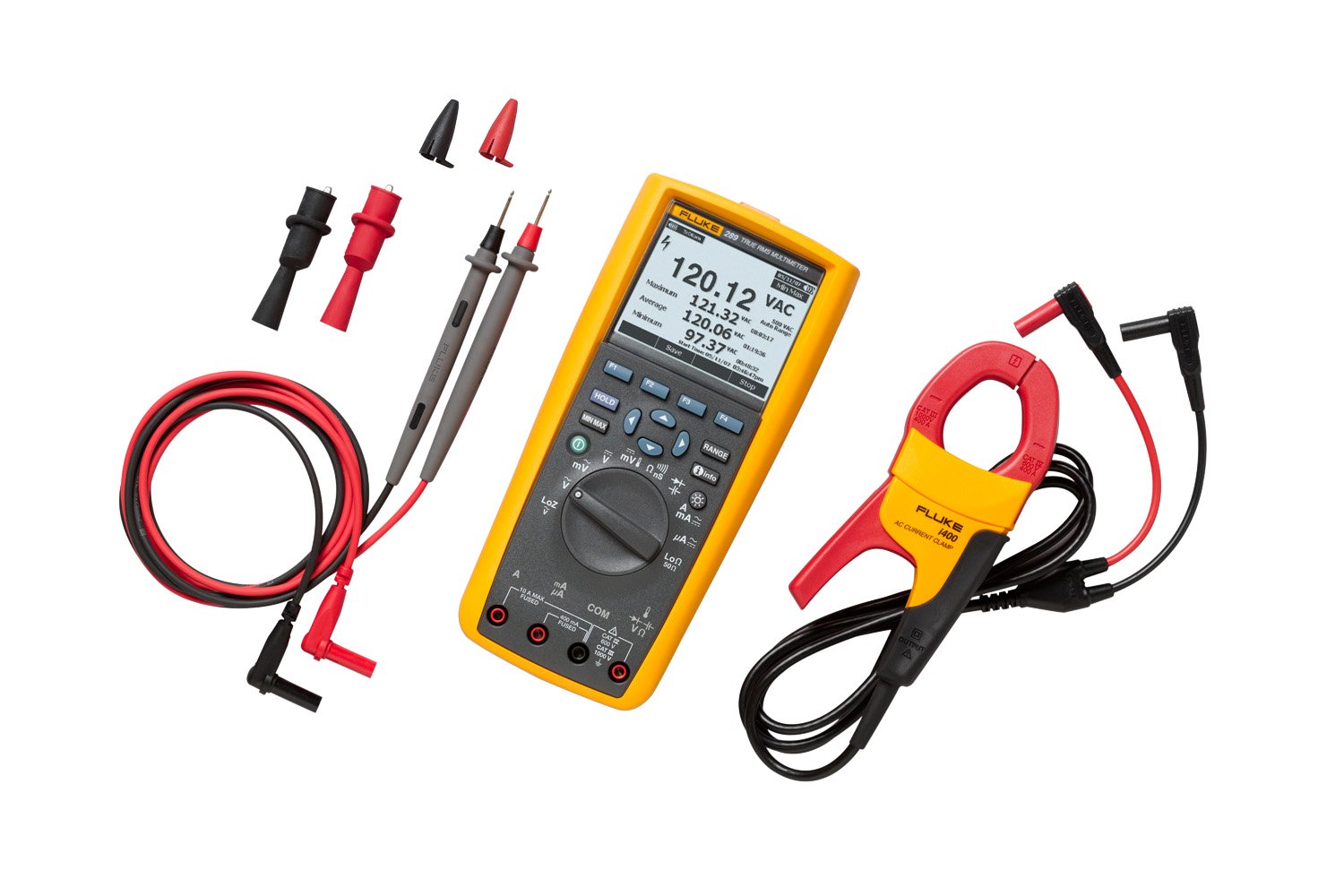

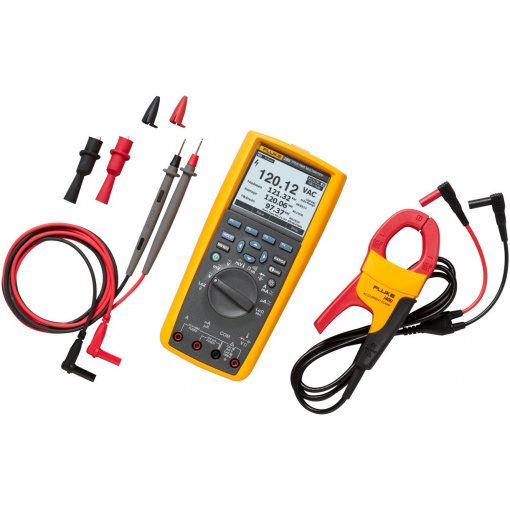

Fluke 289 IMSK Industrial Multimeter Service Kit

Name: Fluke 289 IMSK Industrial Multimeter Service Kit
SKU: 6944
Availability: BackOrder

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

Specifications: Fluke 289 IMSK Industrial Multimeter Service Kit

Specifications for 289
Function
DC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
DC volts	Basic accuracy	0.025%
AC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
AC volts	Basic accuracy	0.4% (True-RMS)
DC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
DC current	Basic accuracy	0.05%
AC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
AC current	Basic accuracy	0.6% (True-RMS)
Temperature (excluding probe)	Range / resolution	-200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
Temperature (excluding probe)	Basic accuracy	1.0%
Resistance	Range / resolution	50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
Resistance	Basic accuracy	0.05%
Capacitance	Range / resolution	1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
Capacitance	Basic accuracy	1.0%
Frequency	Range / resolution	99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
Frequency	Basic accuracy	0.005%
Connectivity	Optional infrared connector via Fluke ir3000 FC

General Specifications
Maximum voltage between any terminal and earth ground	1000 V
Battery type	6 AA alkaline batteries, NEDA 15A IECLR6
Battery life	100 hours minimum, 200 hours in logging mode
Temperature	Operating	-20°C to 55°C
	Storage	-40°C to 60°C
Relative humidity	0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C)
Electromagnetic compatibility	EMC EN61326–1
Vibration	Random vibration per MIL-PRF-28800F Class 2
Shock	1-meter drop per IEC/EN 61010–1 3rd Edition
Size (H x W x L)	22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in)
Weight	870.9 g (28 oz)
Multiple on screen displays	Yes
True-RMS AC bandwidth	100 kHz
dBV/dBm	Yes
DC mV resolution	1 μV
Megohm range	Up to 500 MΩ
Conductance	50.00 nS
Continuity beeper	Yes
Battery/fuse access	Yes/Yes
Elapse time clock	Yes
Time of day clock	Yes
Min-max-avg	Yes
Duty cycle	Yes
Pulse width	Yes
Isolated optical interface	Yes
Auto/touch hold	Yes
Reading memory	Yes
Log to PC	Yes
Interval/event logging	Yes
Logging memory	Up to 15,000 readings
Wireless connectivity (optional)

Specifications: Fluke i400 AC Current Clamp
Nominal current range	400 A
Continuous current range	1 A – 400 A
Maximum non-destructive current	1000 A
Lowest measurable current	1 A
Basic accuracy	2% + 0.06 A
	(45-400 Hz)
	(% reading + floorspec)
Useable frequency	5 Hz – 20 kHz
Output level(s)	1 mA/A

Safety Specifications
Safety	CAT IV 600 V, CAT III, 1000 V
Maximum voltage	1000 V AC rms from earth to ground, in compliance with EN61010

Mechanical and General Specifications
Warranty	1 year
Maximum conductor diameter	32 mm (1.25 in)
Maximum conductor size (busbar)	750 MCM
Output cable length	1.5 m (59 in)
Shrouded banana plugs	Yes
