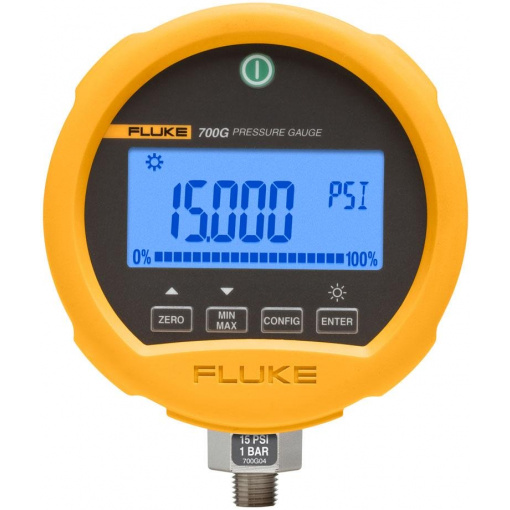

Fluke 700G05 Pressure Gauge Calibrator

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: Fluke 700G Pressure Gauge Calibrator

700R Ranges: Temperature Compensation 0 e °C to 50 °C (32 °F to 122 °F) to rated accuracy.
For temperatures from -10 °C to 0 °C and 50 °C to 55 °C, add .005% FS/ °C
Model	Range	Resolution	Accuracy	Burst Pressure
Fluke-700G01	-10 to +10 inH₂O -20 mbar to 20 mbar	0.001 inH₂O, 0.001 mbar	Positive pressure ±0.1% of range, Vacuum ±0.1% of range	3 psi, 210 mbar
Fluke-700G02	-1 to +1 psi, -70 mbar to 70 mbar	0.0001 psi, 0.001 mbar	Positive pressure ±0.1% of range, Vacuum ±0.1% of range	5 psi, 350 mbar
Fluke-700G04	-14 to 15 psi, -0.97 to 1 bar	0.001 psi, 0.0001 bar	Positive pressure ±0.05% FS Vacuum ±0.1% FS	60 psi, 4 bar
Fluke-700G05	-14 to 30 psi, -0.97 to 2 bar	0.001 psi, 0.0001 bar	Positive pressure ±0.05% FS Vacuum ±0.1% FS	120 psi, 8 bar
Fluke-700G06	-12 to 100 psi, -0.83 to 6.9 bar	0.01 psi, 0.0001 bar	Positive pressure ±0.05% FS Vacuum ±0.1% FS	400 psi, 26 bar
Fluke-700G27	-12 to 300 psi, -0.83 to 20 bar	0.01 psi, 0.001 bar	Positive pressure ±0.05% FS Vacuum ±0.1% FS	1200 psi, 80 bar
Fluke-700G07	-12 to 500 psi, -0.83 to 34 bar	0.01 psi, 0.001 bar	Positive pressure ±0.05% FS Vacuum ±0.1% FS	2000 psi, 138 bar
Fluke-700G08	-14 to 1000 psi, -0.97 to 69 bar	0.1 psi, 0.001 bar	Positive pressure ±0.05% FS Vacuum ±0.1% FS	4000 psi, 266 bar
Fluke-700G10	-14 to 2000 psi, -.97 bar to 140 bar	0.1 psi, 0.01 bar	Positive pressure ±0.05% FS Vacuum ±0.1% FS	8000 psi, 550 bar
Fluke-700G29	-14 to 3000 psi, -0.97 to 200 bar	0.1 psi, 0.01 bar	Positive pressure ±0.05% FS Vacuum ±0.1% FS	10000 psi, 690 bar
Fluke-700G30	-14 to 5000 psi, -0.97 to 340 bar	0.1 psi, 0.01 bar	Positive pressure ±0.05% FS Vacuum ±0.1% FS	10000 psi, 690 bar
Fluke-700G31	-14 to 10000 psi, -0.97 to 690 bar	1 psi, 0.01 bar	Positive pressure ±0.05% FS Vacuum ±0.1% FS	20000 psi, 1035 bar
Fluke-700GA4	0 to 15 psia, 0 to 1 bar absolute	0.001 psi, 0.0001 bar	±0.05% of range	60 psi, 4 bar
Fluke-700GA5	0 to 30 psia 0 to 2 bar absolute	0.001 psi, 0.0001 bar	±0.05% of range	120 psi, 8 bar
Fluke-700GA6	0 to 100 psia, 0 to 6.9 bar absolute	0.01 psi, 0.0001 bar	±0.05% of range	400 psi, 27 bar
Fluke-700GA27	0 to 300 psia, 0 to 20 bar absolute	0.01 psi, 0.001 bar	±0.05% of range	1200 psi, 80 bar
Fluke-700RG05	-14 to +30 psi, -0.97 to +2 bar	0.001 psi, 0.0001 bar	Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.05% of range	90 psi, 6 bar
Fluke-700RG06	-12 to 100 psi, -0.83 to 6.9 bar	0.01 psi, 0.0001 bar	Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.1% of range	400 psi, 27 bar
Fluke-700RG07	-12 to 500 psi, -0.83 to 34	0.01 psi, 0.001 bar	Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.1% of range	2000 psi, 138 bar
Fluke-700RG08	-14 to 1000 psi, -0.97 to 69 bar	0.1 psi, 0.001 bar	Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.1% of range	4000 psi, 275 bar
Fluke-700RG29	-14 to 3000 psi, -0.97 to 200 bar	0.1 psi, 0.01 bar	Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.1% of range	10000 psi, 690 bar
Fluke-700RG30	-14 to 5000 psi, -0.97 to 340 bar	0.1 psi, 0.01 bar	Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.1% of range	15000 psi, 1035 bar
Fluke-700RG31	-14 to 10000 psi, -0.97 to 690 bar	1 psi, 0.01 bar	Positive pressure, ±0.04% of reading +.01% of range, Vacuum ±0.1% of range	20000 psi, 1380 bar

Media compatibility
10 inH₂O, 1, 15, 30 psi: any clean dry non-corrosive gas 100, 300, 500, 1000 psi: any liquids or gases compatible with 316 stainless steel and above 1000 psi: any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.

Mechanical Specifications
Dimensions (H x W x D)	12.7 x 11.4 x 3.7 cm (5 x 4.5 x 1.5 in)
Pressure connection	¼ in NPT Male
Housing/Weight	Cast ZNAL 0.56 kg (1.22 lb) with holster
Display	5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100%
Power	Three (3) AA alkaline batteries
Battery life	1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate
