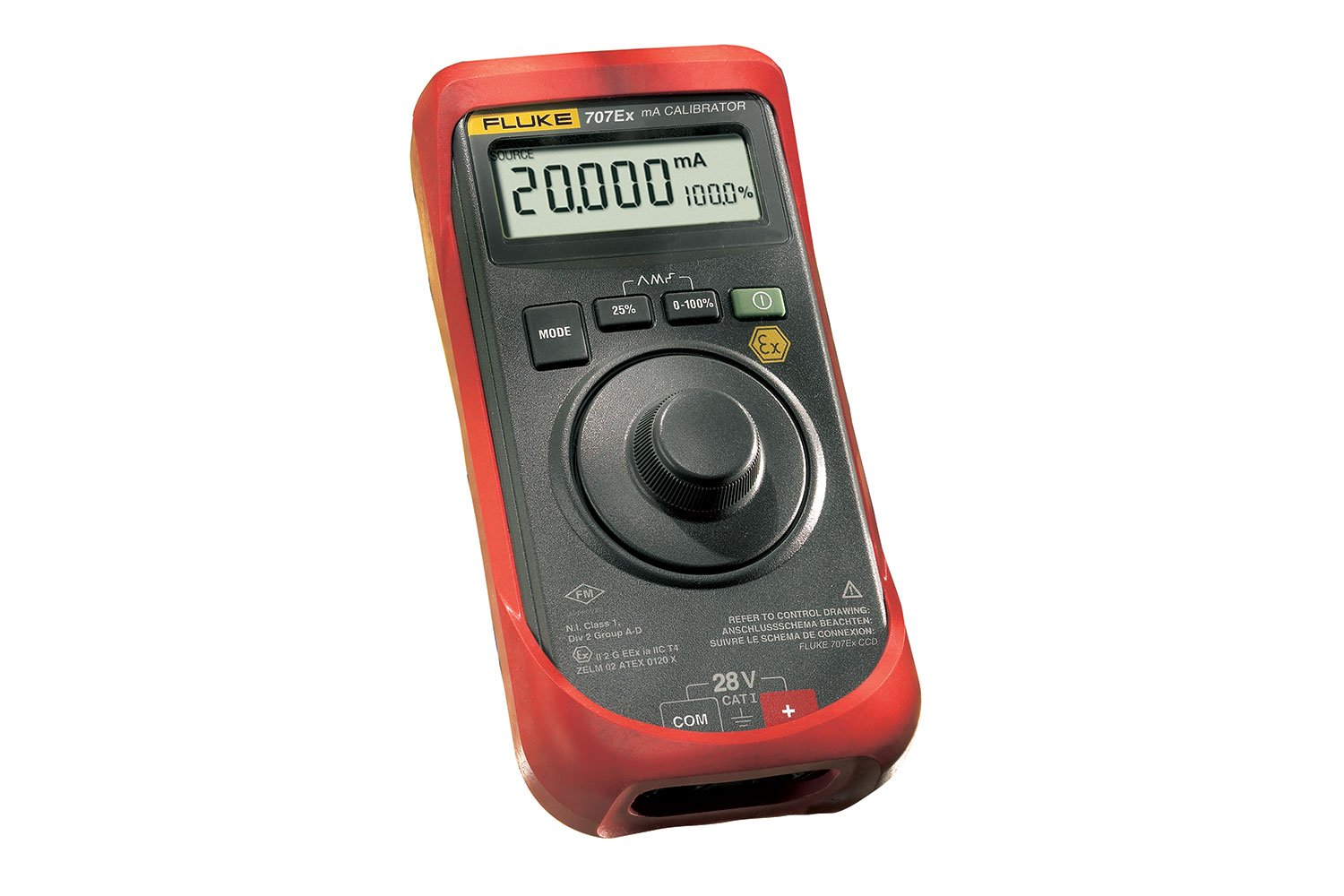

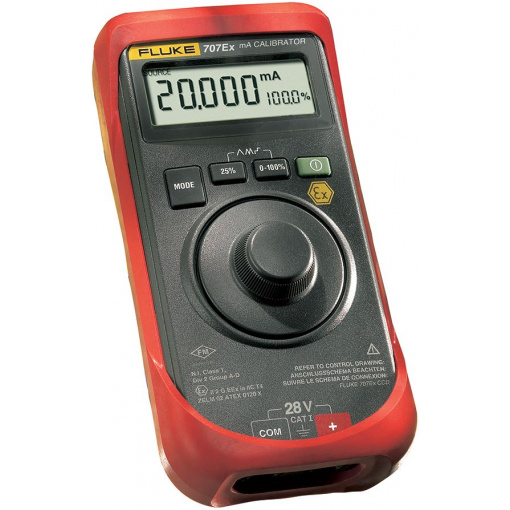

Fluke 707Ex Intrinsically Safe mA Loop Calibrator

Name: Fluke 707Ex Intrinsically Safe mA Loop Calibrator
SKU: 7118
Availability: BackOrder

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

Specifications: Fluke 707Ex Intrinsically Safe mA Loop Calibrator

Specifications
Current measurement	Range	0 to 24 mA
	Resolution	0.001 mA
	Accuracy	0.015% Rdg + 2 LSD
Current sourcing	Range	0 to 20 mA or 4 to 20 mA
	Accuracy	0.015% Rdg + 2 LSD
	Drive capability	700 Ω at 20 mA
Current simulation	Range	0 to 20 mA or 4 to 20 mA
	Accuracy	0.015% Rdg + 2 LSD
Loop power	While measuring mA, 24 V
Voltage measurement	Range	0 to 28 V DC
	Resolution	1 mV
	Accuracy	0.015% Rdg + 2 LSD
Environmental Specifications
Operating temperature	-10ºC to 55ºC
Storage temperature	-40ºC to 60ºC
Humidity (without condensation)	0 to 95% (0ºC to 30ºC);
	0 to 75% (30ºC to 40ºC)
	0 to 45% (40ºC to 50ºC)
Temperature coefficient	-10ºC to 18ºC, 28ºC to 55ºC, ±.005% of range per ºC
Safety Specifications
Safety	CSA C22.2 No. 1010.1:1992
EMC	EN50082-1:1992 and EN55022:1994 Class B
Maximum voltage	30 V
ATEX certification	Ex II G Ex ia IIC T4 Zones 1 and 2, ZELM 02 ATEX 0120 X
CE certification	EN61010-1 and EN61326
Mechanical and General Specifications
Size	152 x 70 x 41 mm
Weight	224 g (350 g including holster)
Batteries	One 9V battery Alkaline
Warranty	1 year
Shock & vibration	per MIL-T-28800 for a Class 2 Instrument
Display current and % of span	Yes
Auto step, auto ramp	Yes
Span check	Yes
