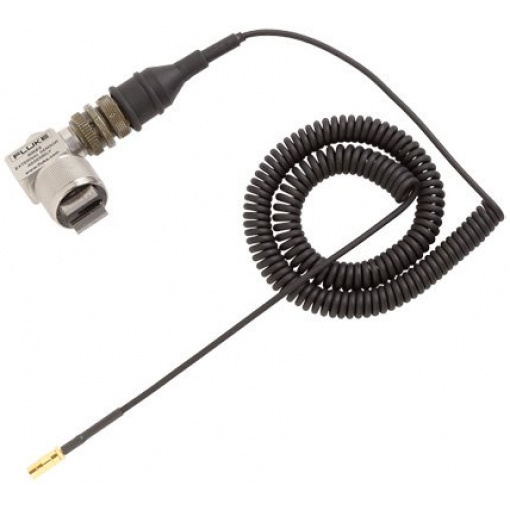

Fluke 805ES

Name: Fluke 805ES
SKU: 7005
Availability: BackOrder

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

Specifications: Fluke 805ES

Performance
Measurement range	7 g pk (68.7 m/s² pk)
Frequency range	0 to 6000 cpm (0 to 100 Hz)
Relay	3A Form C 480 VAC
Relay (Contacts) (DPDT)	Normally open / closed
Environmental
Temperature range (Operating)	-13 to 140°F (-25 to 60°C)
Enclosure rating	IP66
Physical
Size (Width x Height x Depth)	4.35 x 3.30 x 4.35 in (110.5 x 83.8 x 110.5 mm)
Weight	2.5 lb (1.134 kg)
Sensing element	Magnet
Housing material	Aluminum alloy
Electrical connector	Screw terminals
Screw terminal wire size	24-14 AWG (0.2 – 2.5 mm²)
Cable input	3/4-14 NPT
Mounting hole size	0.25 in (6.4 mm)
Sensing geometry	Inertial element
