Fluke Two-pole Voltage and Continuity Testers

Fluke T130 Two-pole Voltage and Continuity Testers

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized

รายละเอียดเพิ่มเติม

Specifications: Fluke Two-pole Voltage and Continuity Testers

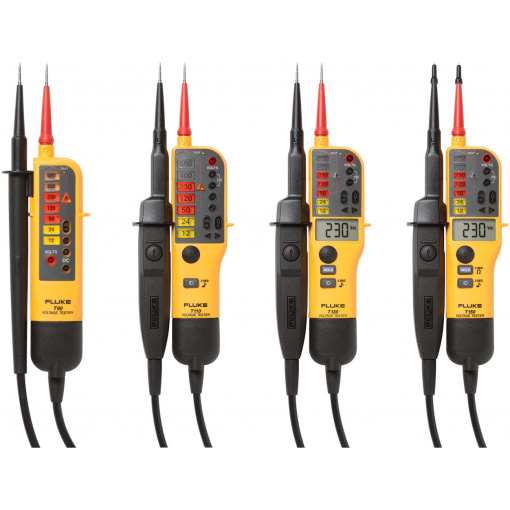

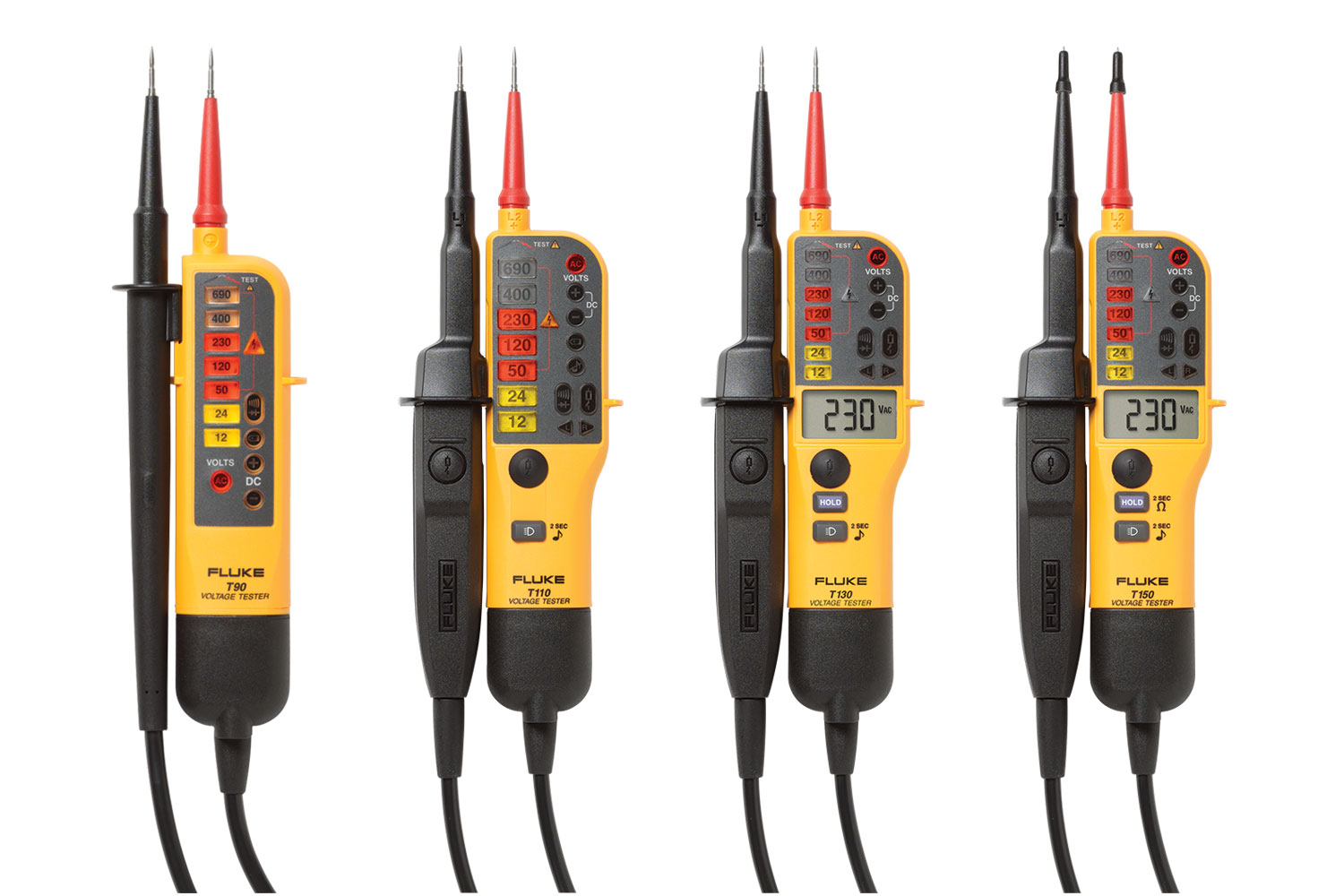

The complete family of Fluke Two-Pole Voltage and Continuity testers lets you choose the features, functions, and price/performance to fit your applications and preferences.

Fluke voltage and continuity tester selection guide

Features	T150	T130	T110	T90
Backlit LED indicator	•	•	•	•
Backlit LCD digital display	LCD	LCD
Continuity test—visual results	•	•	•	•
Continuity test—audible results	• with on/off	• with on/off	• with on/off	•
Vibratory indicator under load	•	•	•
Display hold	•	•
Voltage test	•	•	•	•
Indication of polarity	•	•	•
Resistance measurement	•
Switchable load	•	•	•
Single pole test for phase detection	•	•	•	•
Rotary field indicator	•	•	•
Probe tip protection	•	•	•	•
Voltage detection with discharged batteries	•	•	•	•
Electrical torch function	•	•	•
Wear indicator test lead wire	•	•	•	•

Product specifications

Specifications	T90	T110	T130	T150
Voltage AC/DC	12V – 690V	12V – 690V	6V – 690V	6V – 690V
Continuity	0 – 400 kΩ	0 – 400 kΩ	0 – 400 kΩ	0 – 400 kΩ
Frequency	0 / 40 – 400 Hz	0 / 40 – 400 Hz	0 / 40 – 400 Hz	0 / 40 – 400 Hz
Phase rotation	–	100 V – 690 V	100 V – 690 V	100 V – 690 V
Resistance measurement	–	–	–	Up to 1999 Ω
Response Time (LED indicator)	< 0.5 s	< 0.5 s	< 0.5 s	< 0.5 s
200 kΩ input impedance	Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V	Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V	Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V	Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V
7k Ω input impedance (with load buttons pressed)	–	Current draw 30 mA @ 230 V	Current draw 30 mA @ 230 V	Current draw 30 mA @ 230 V
Safety rating	CAT II 690V CAT III 600V	CAT III 690V CAT IV 600V	CAT III 690V CAT IV 600V	CAT III 690V CAT IV 600V
IP rating	IP54	IP64	IP64	IP64
Power requirement	2-AAA batteries	2-AAA batteries	2-AAA batteries	2-AAA batteries
Net weight	280 g (9.9 oz)	280 g (9.9 oz)	280 g (9.9 oz)	180 g (6.4 oz)
Size (LxWxH)	26 cm x 7 cm x 3.8 cm	26 cm x 7 cm x 3.8 cm	26 cm x 7 cm x 3.8 cm	23 cm x 6.5 cm x 3.8 cm
Warranty	1 years	1 years	1 years	1 years
Country of origin	Great Britain	Great Britain	Great Britain	Great Britain
