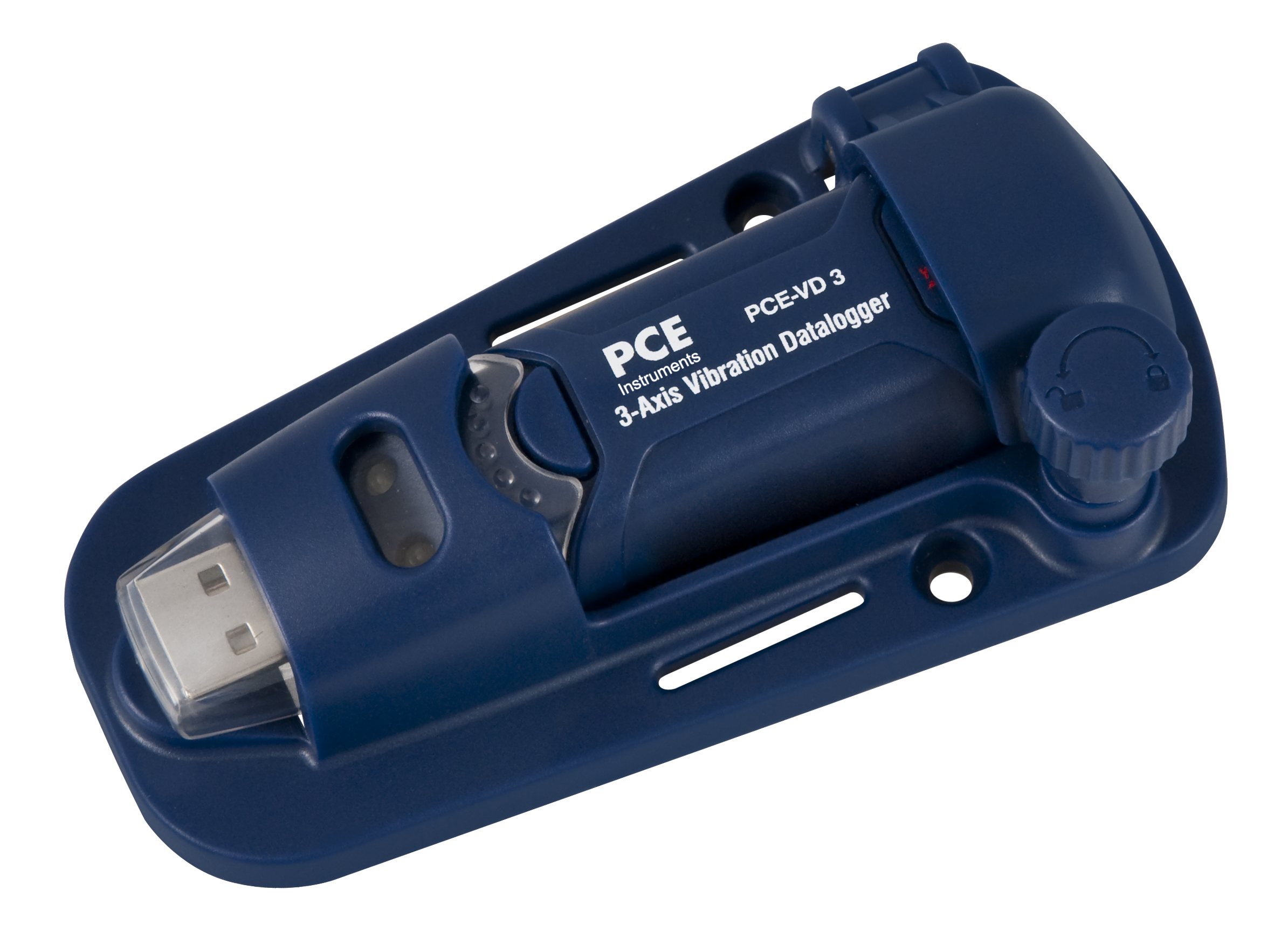

PCE-VD 3 Vibration Recorder |
|
The PCE-VD 3 Vibration Recorder is a miniaturized universal Vibration Recorder with an included built-in three-axes acceleration sensor (X, Y, Z axis). The internal sensor of the PCE-VD 3 Vibration Meter measures acceleration force along the X, Y, and Z axes with a measurement range of ±18 g per axis. Since the PCE-VD 3 Vibration Meter is in motion while it is recording data, alterations are recorded for the three axes. The PCE-VD 3 Vibration Meter can be placed anywhere due to its robust and magnetic bracket. Moreover, due to its small size and lightweight, the Vibration Meter can be used for many different applications, such as shipment control, sports, medicine, or for any application requiring the recording of movements of 1 to 3 axes. The PCE-VD 3 Vibration Meter can be easily programmed through the included software. All data can be sent to a PC or laptop via the USB port easily and quickly. Note: The VD 3 must be programmed with a PC before it will operate, follow instruction manual to setup unit. |
– USB port
– Light weight
– Stand included
– Storage capacity: 4 Mbit (85764 records)
– Magnetic wall mount
Measurement Range | ±18 g |
Accuracy | ± 0.5 g |
Resolution | 0.00625 g |
Measurement Rate / Record Interval | 50 ms to 24 hours |
Memory | 4 Mbit (85764 records) |
Frequency Range | 0 … 60 Hz |
Interface | USB |
Operating Conditions | 0 … 40 ºC / 32 ºF … 104 ºF, 10 … 90 % H.r. |
Dimensions | 95 mm x 28 mm x 21 mm, 3.7 in x 1.1 in x 0.8 in |
Dimensions of the Wall Bracket | 106 mm x 56 mm x 33.5 mm 4.2 in x 2.2 in x 1.3 in |
Battery Indications | By means of two LEDs (record in process / alarm) |
Power Supply | Interchangeable 3.6 V lithium battery |
Software | from Windows XP (also in 64 Bit version) |
Mounting | by means of the wall mount included in the delivery |
