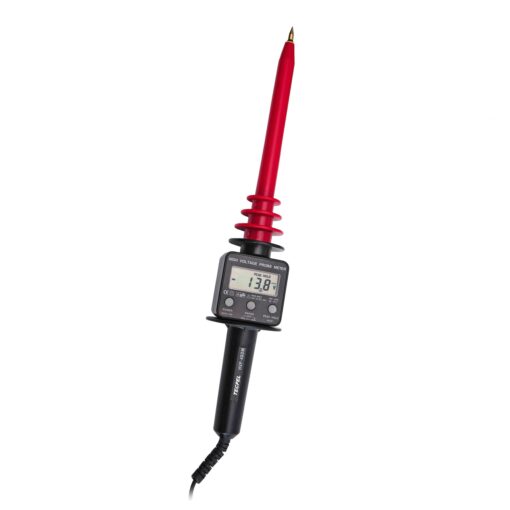

TECPEL HVP-40DM Digital High Voltage Meter High Precision Display

Measurement Specification

• Input Impedance :�2000MΩ
• Max Operation Voltage :�40KV DC
• Display :�3999 Digital LCD
• Resolution :�10V / 1V / 0.1V
• Power Source :�9V / 006P, IEC6L R1, NEDA 1604A

Product Features

• Auto Power Off :�About 30 min
• Peak Hold :�≧ 400ms
• Accuracy :�Full Range ≦ 1.0% ± 2 digits
• Complies with Standards :�CE, IEC1010

Product Information

• Operating Temperature :�0 °C ~ 50 °C
• Storage Temperature :�-20 °C ~ +70 °C
• Dimensions :�420 L x 80ψ
• Weight :�360g
• Ground Lead Length :�90cm
