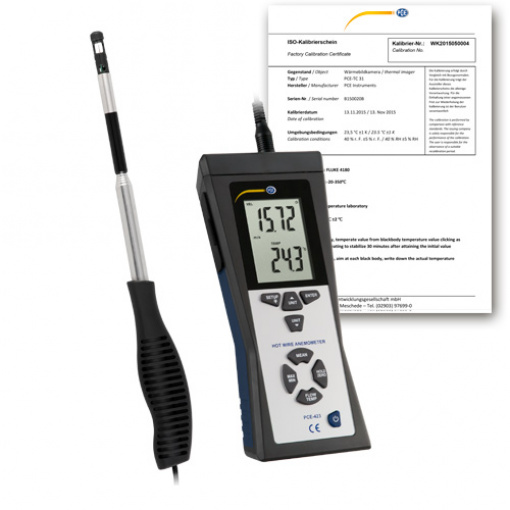

The PCE-423 Wind Speed Meter with thermal sensor is highlighted by its good relation between price and quality. The PCE-423 Wind Speed Meter has a high resolution to be used for different applications. This PCE-423 Wind Speed Meter belongs to the the basic equipment for professionals working with ventilation systems. The PCE-423 Wind Speed Meter is also used in institutional research and development.
The thin probe (8 mm / .3 in diameter) makes it possible to use the Wind Speed Meter in areas with a minimum range of measurement such as inside refrigeration units. Additionally, the PCE-423 Wind Speed Meter has a telescopic probe with a max. length of 1 m / 3.3 ft. Both the USB cable and the software (included in the delivery), allow for the PCE-423 Wind Speed Meter to be connected to a PC or laptop to transfer data continuously. Data can be stored in either txt format or csv one for further analysis.
– Suitable for low velocity air flow
– multiple measurement units available
– Large LCD display
– Data-Hold function
– Easy-to-use
– Shows max. y min. values on the display
– Solid enclosure
– Auto shut-off to protect battery life
– Comes with telescopic thermal probe (max. length: 1 m / 3.3 ft), software, USB data cable batteries, carrying case and user’s manual
Measurement ranges | |
0.1 m/s … 25.0 m/s | |
20 ft/min … 4925 ft/min | |
0.2 kn … 48.5 kn | |
0.3 km/h … 90.0 km/h | |
0.2 mph … 55.8 mph | |
0.0°C … 50.0°C / 32°F … 122°F | |
Resolution | |
0.01 m/s | |
1 ft/min | |
0.1 kn | |
0.1 km/h | |
0.1 mph | |
0.1°C / 32.2°F | |
Accuracy | |
– Air velocity | ±5% ±1digit (of the measurement field) |
– Temperature | ±1°C / 33.8°F |
Thermal probe | Telescopic thermal probe |
-Length unextended | 185 mm / 7.3 in |
-Length extended | 1000 mm / 39.4 in |
-Maximum diameter | 12 mm / 0.5 in |
-Minimum diameter | 10 mm / 0.4 in |
Measurement quota | Approx. 0.8 s |
Display | LCD display 46.7 mm x 60 mm / 1.8 in x 2.4 in |
Interface | USB |
Operating conditions | 0°C … 50°C / 32°F … 122°F 80% H.r. |
Power | 9V battery |
Auto shut-off | After 5 min. of inactivity |
Dimensions | 210 mm x 75 mm x 50 mm / 8.3 in x 3.0 in x 2.0 in |
Enclosure | ABS plastic |
Weight | 280 g / < 1 lb |
