PCE-360 Single-Phase / 1-Phase Power Meter
Power-analyzing clamp meter with data logger functionality / Includes clamps, clips, leads, PC software and data cable
The PCE-360 is a Single-Phase Power Meter or clamp meter with data logger functionality. This versatile power analyzer can take single-phase and three-phase power measurements both in real time and over an extended time period. The PCE-360 is used for the analysis of voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVar), power factor (cos Φ), phase angle (Φ), frequency (Hz), rotary field (UL > 50V), active energy (MWh), apparent energy (MVAh), reactive energy (MVArh), harmonics (1 … 63 order, via software), and waveforms (via software).

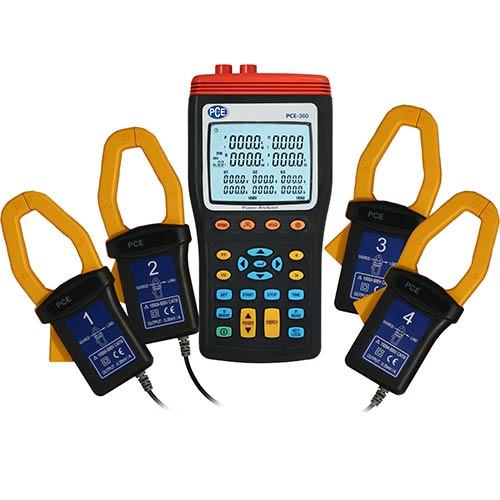

The meter’s large and easy-to-read screen displays up to 10 measurements simultaneously. In manual mode, the device stores up to 99 measurements directly. In data logger mode, the device stores up to 10,000,000 sets of measurements to the 4 GB internal memory. Measured values are transferred easily to a PC using the included Windows-compatible software and data cable. In addition, four current clamps, four alligator clips, and four measuring leads are included in the delivery contents.
-For measurement in real time and over an extended time period up to 578 days @ 5 second sample rate
-Includes clamps, clips, leads, PC software and data cable
-Large, easy-to-read screen displays up to 10 measurements simultaneously
-Stores up to 99 measurements directly in manual mode or up to 10,000,000 sets of measurements to the 4 GB internal memory in data logger mode
-For analysis of voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVar), power factor (cos Φ), phase angle (Φ), frequency (Hz), rotary field (UL > 50V), active energy (MWh), apparent energy (MVAh), reactive energy (MVArh), harmonics (1 … 63 order, via software) and waveforms (via software)
-Battery-saving automatic shutdown after approximately 30 minutes of inactivity
-Device comes factory calibrated – optional ISO calibration certificate available for an additional fee (see accessories for details)
AC Voltage measurement | 50…600.0 V True RMS value |
Accuracy | ±1.5 % of measured value |
Resolution | +10 digits / 0.1 V |
AC Current measurement | 3 … 999.9 A True RMS value |
Accuracy | ±1.5 % of measured value |
Resolution | +15 digits / 0.1 A |
Active Power measurement P | 150 W… 999.9 kW |
Accuracy | ±1.5 % of measured value |
Resolution | +20 digits / 0.1 KW |
Apparent Power measurement S | 150 VA… 999.9 kVA |
Accuracy | ±1.5 % of measured value |
Resolution | +20 digits / 0.1 KVA |
Reactive Power measurement Q | 150 VAR… 999.9 kVar |
Accuracy | ±1.5 % of measured value |
Resolution | +20 digits / 0.1 KVar |
Power Factor measurement | 0 … +1 COSψ |
Accuracy | ± 0.06 |
Resolution | 0.001 |
Phase angle measurement | -90° …. +90° ψ |
Accuracy | ± 3° |
Resolution | 0.1 |
Frequency measurement (U > 50V) | 40 … 100 Hz |
Accuracy | ±1 % of measured value +2 digits |
Resolution | 0.1 Hz |
Three Phase Sequence Detection (UL > 50V) | yes |
Active Power Energy measurement | 0 … 9999 MWh |
Accuracy | ±1.5 % of measured value |
Resolution | +20 digits |
Apparent Power Energy measurement | 0 … 9999 MVAh |
Accuracy | ±1.5 % of measured value |
Resolution | +20 digits |
Reactive Power Energy measurement | 0 … 9999 MVarh |
Accuracy | ±1.5 % of measured value |
Resolution | +20 digits |
Max. current clamp opening | 40 mm / 1.57″ |
Data storage | 50 records for manual storage 4 GB SD card for data logging (99 storage locations with 350,000 data records each) |
Data interface | serial via USB cable |
Display | illuminated LC display |
Power supply | 8 x 1.5 V type AA (Mignon) |
Dimensions | 235 x 117 x 54 mm / 9.25 x 4.61 x 2.13″ |
Weight | 730 g / 1.61 lbs |
Environmental conditions | max. 85% relative humidity / 0 … +40 °C / 32 … 104 °F |
Protection class / standards | IP 30 / IEC 61 010, 600 V / CAT III |
