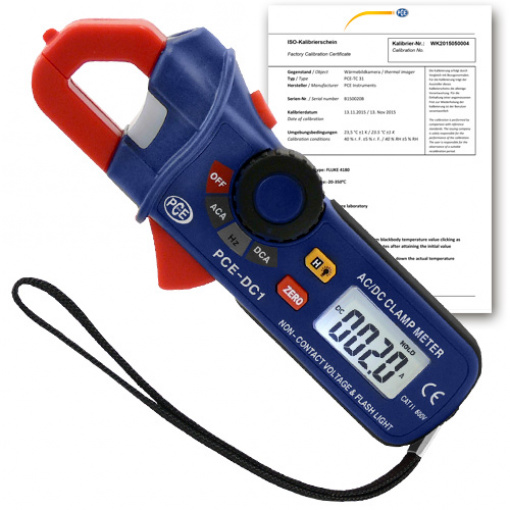

HVAC meter PCE-DC1-ICA incl. ISO calibration certificate
Digital Mini Ampere Meter for AC Power, AC Voltage, DC Power and frequency (3 in 1) / Clamp opening max. 18 mm
Digital Mini Ampere Meter for AC Power, AC Voltage, DC Power and frequency (3 in 1) / Clamp opening max. 18 mm
This ammeter was developed for the indirect detection of AC / DC currents as well as the frequency. A non-contact voltage tester function and a torch for illuminating the measuring point were also integrated in this ammeter. The small dimensions of this ampere pliers, allow use in hard to reach places.
The large illuminated display of the ampere measuring instrument ensures a very good readability even in dark places, such as in control cabinets and cable ducts. The non-contact voltage tester not only helps you identify dangerous potentials, but also provides you with an accurate tool for finding broken wire positions.
– 3 2/3-digit LCD display, backlit, DC clamp
– AC / DC current, AC voltage and frequency measurement
– Measured value memory function, DCA zero point function, non-contact voltage tester
– Integrated measuring point illumination
– Automatic range selection
– Automatic switch-off
– Pliers opening: 18 mm
– Incl. ISO calibration certificate
– AC / DC current, AC voltage and frequency measurement
– Measured value memory function, DCA zero point function, non-contact voltage tester
– Integrated measuring point illumination
– Automatic range selection
– Automatic switch-off
– Pliers opening: 18 mm
– Incl. ISO calibration certificate
AC current (50 / 60Hz) | |
Area | 200 A |
Resolution | 100-mA |
Accuracy | ± 3.0% + 8dgt |
DC power | |
Area | 200 A |
Resolution | 100-mA |
Accuracy | ± 2.8% + 8dgt |
AC voltage test (contactless test) | 100V AC to 600V AC 50/60 Hz |
Frequency | |
Area | 40 … 50 Hz |
Resolution | 0.01 Hz |
Accuracy | ± 1.2% + 5dgt |
Area | 51 … 510 Hz |
Resolution | 0.1 Hz |
Accuracy | ± 1.2% + 3dgt |
Area | 0.51 … 1 kHz |
Resolution | 0.001 kHz |
Accuracy | ± 1.2% + 3dgt |
Measuring point illumination | white LED |
Conductor diameter | 18 mm max. |
Display | 3 2/3 digit LCD display, with white LED, backlit, |
Care | 2 x 1.5V AAA battery |
Casing | PVC |
Dimensions | 155 x 66 x 31 mm / 6.1 x 2.6 x 1.2 in |
Weight | 155 g / < 1 lb |
Standardization | EN61010-1; CAT II / 600V EN61010-2-032; CAT III / 300V |
