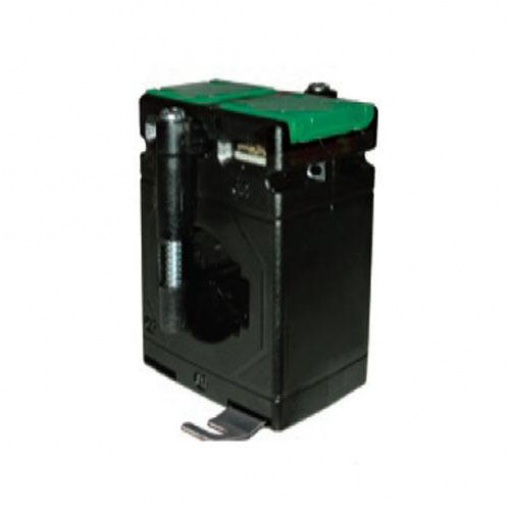

Current Transformer PCE-LCTB 50/30 (50)

Current transformer or DIN rail meter PCE-LCTB 50/30 (50) Series for measuring AC currents up to 600 A

The DIN rail meter PCE-LCT 50/30 (50) is used when alternating currents in circuits are too high to be directly detected by measuring devices. The DIN-rail meter converts the primary current into a proportional reduced secondary current which can be processed by a measuring device. In addition, the rail-mounted meter protects connected measuring devices against high voltages. The DIN rail Meters PCE-LCT 50/30 (50) series can detect primary currents from 50 A to 600 A depending on the version and convert it to a 1 A or 5 A secondary current. In addition, you can choose between the accuracy classes 1 and 0.5.



– Primary coil (input): 50 A … 600 A
– Secondary coil (output): 1 A / 5 A
– System voltage: max. 720 V
– Accuracy class: 0.5 / 1
– Frequency: 50 Hz
– IEC/EN 60044-1, BS 3938, IS 2705-1 Standards
– Easy assembly
– Compact dimensions
