Voltage Transmitter PCE-P20Z AC Voltage

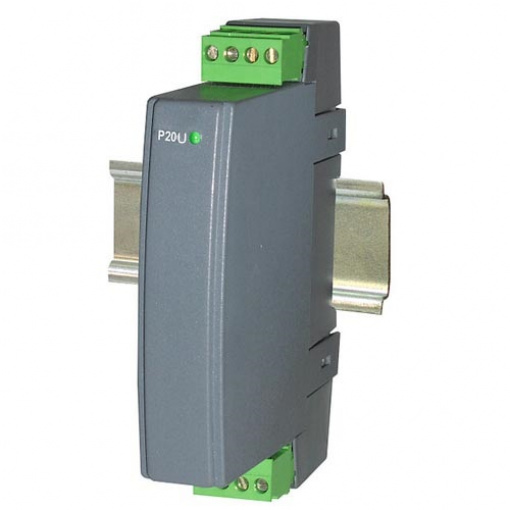

Voltage converter PCE-P20Z for alternating voltage The PCE-P20Z voltage transmitter measures voltages up to 600 V AC and converts this into a standard signal. Depending on the version, the voltage converter PCE-P20Z can measure voltages up to 250 V AC, 400 V AC or 600 V AC and outputs a 4 … 20 mA standard signal. Depending on the model, the supply voltage of the transmitters is either 85 … 253 V AC / DC or 20 … 40 V AC / DC. The installation is simple: the voltage transmitter can be easily attached to a 35 mm DIN rail. The standard signals output by the measuring transducer can then be processed with the aid of controllers or screen recorders.
– RMS Measurement of voltages up to 600 V AC
– Output: 4 … 20 mA Standard signal
– Various supply voltages
– Compact DIN rail mounting
– IP 50
– Current transformer connectable
– Easy to operate
