Measuring range | -20 … 380 °C |
Measuring accuracy | (at 18 … 28 °C ) |
> 0 °C: ± 2 % of measured value or ± 2 °C | |
< 0 °C: ± 3 °C | |
Resolution | Thermal imaging: 33 x 33 Pixel |
Real image: 300,000 Pixel | |
Field of view | 32 x 32 ° |
Frame rate | 9 Hz |
Focus | 0.5 m |
Emissivity | 0.1 … 1 |
Thermal sensitivity | 0.15 °C |
Spectral range | 8 … 14 µm |
Crossfade | Picture-in-Picture stepwise in 25% steps |
Memory | Micro SD card up to 8 GB |
Format | BMP |
Interface | USB |
Shutdown | automatic |
adjustable 3, 5, 20 minutes | |
Power supply | 4 x 1.5 V AA batteries |
Operating conditions | -5 … 40 °C / 10 … 80 % r.H. |
Storage conditions | -20 … 55 °C |
Dimensions | 195 x 100 x 55 mm |
Weight | ca. 295 g |

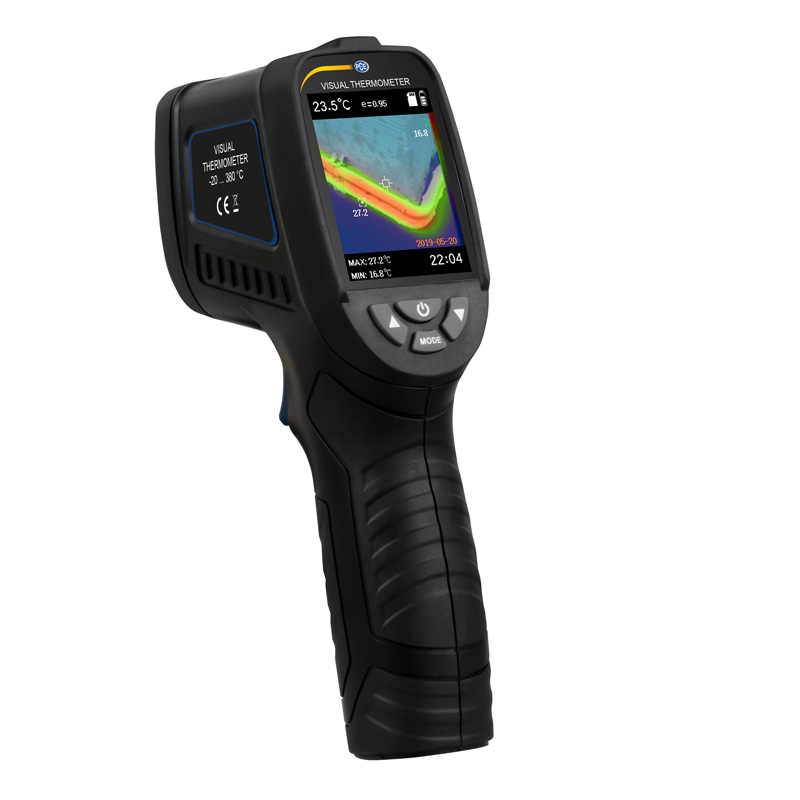

Thermal Imager Camera PCE-TC 24�
Infrared Video Thermometer / 33 x 33 Pixel / Picture-in-Picture Function / Micro-SD-Memory / -20 … 380 °C measuring range / USB interface
The thermal camera PCE-TC 24 is a picture-in-picture thermal camera. This thermal camera measures the temperature between -20 and 380 °C without contact. The thermal camera is suitable for fast and simple temperature measurements in the house, switch cabinets etc. The infrared video thermometer quickly and easily locates thermal bridges or hot components. The illuminated LC display with a resolution of 240 x 320 pixels always shows the spot temperature in the upper left corner of the display. In addition, a hot and cold point can be displayed.
The IR thermal imaging camera has a resolution of 33 x 33 pixels, which is very well suited for simple measuring tasks. With the picture-in-picture function, the thermal image can be integrated into the recorded real image. This is done by pressing a button on the infrared video thermometer. The infrared video thermometer is equipped with a dimmable LED to illuminate the measuring point. For documentation and archiving, the IR thermometer has a memory function on a micro SD card, which can be transferred via USB.
– Resolution 33 x 33 Pixel
– Temperature range -20 … 380 °C
– Picture-in-picture function
– Micro-SD card memory
– Adjustable emissivity
– Focal distance 0.5 m
