Thermal Imager PCE-HDM 15

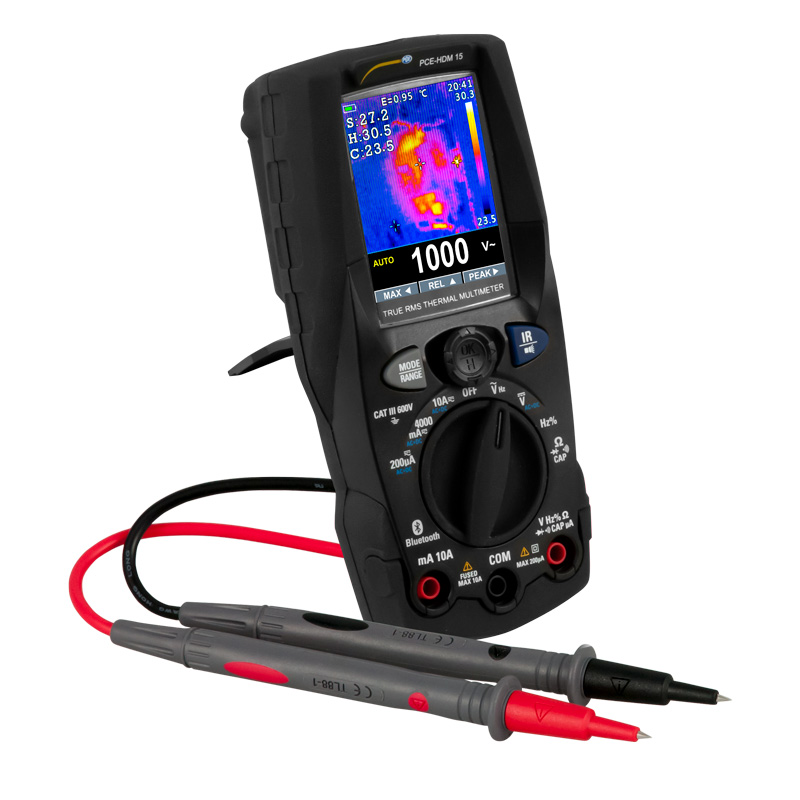

The digital multimeter PCE-HDM 15 is a universal and robust measuring device. With this digital multimeter, voltages, currents, resistances and many other electrical quantities can be measured. As an additional function with the digital multimeter, a Bluetooth connection with a smartphone can be established. The digital multimeter automatically sends live all measured data to a smartphone. The smartphone itself becomes a data logger. From there, the data measured and sent by the digital mulitmeter can be analyzed and, for example, transmitted to a PC or sent.

Thanks to the built-in thermal imaging camera in the digital multimeter, temperatures of surfaces can also be measured. This allows temperature measurements from a distance with the digital multimeter. The sturdy rubber holster makes the digital multimeter robust in use in the workshop, on the construction site or in schools for training purposes.

– Multimeter with 11 measuring functions
– Thermal camera
– Bluetooth interface
– Rechargeable battery
– Color TFT display
– TRMS measurement

Type of measurement
AC voltage AC V TRMS	Measuring range	Resolution	Accuracy
	4,000V	0.001V	± 0.5% + 5 Dgt
	40.00V	0.01V	at 50 … 60 Hz
	400.0V	0.1V	± 2.5% + 5 Dgt
	600V	1V	at 61 … 1 kHz
Input resistance: > 9 MΩ, The accuracy refers to the measuring range between 10 … 100% with a sine wave, accuracy of the PEAK function ± 10%, PEAK reaction time 1 ms, overvoltage protection; 600V AC / DC rms
DC voltage DC V	Measuring range	Resolution	Accuracy
	400.0 mV	0.1 mV	± 0.8% + 8 Dgt
	4,000V	0.001V	± 0.5% + 5 Dgt
	40.00V	0.01V	± 0.8% + 5 Dgt
	400.0V	0.1V	± 0.8% + 5 Dgt
	600V	1V	± 0.8% + 5 Dgt
Input resistance: > 10 MΩ, overvoltage protection; 600V AC / DC rms
AC and DC AC + DC TRMS	Measuring range	Resolution	Accuracy
	4,000V	0.001V	± 2.5% +20 Dgt at 50 … 1 kHz
	40.00V	0.01V
	400.0V	0.1V
	600V	1V
Input resistance: > 10 MΩ, overvoltage protection; 600V AC / DC rms
AC AC TRMS	Measuring range	Resolution	Accuracy
	200.0 μA	0.1 μA	± 2.0% + 5 Dgt
	4000-mA	1-mA	± 2.5% + 5 Dgt
	10.00 a	0.01-mA	± 2.5% + 5 Dgt
The accuracy refers to the measuring range between 5 … 100% with a sine wave and a frequency between 50 … 1 kHz. Accuracy of the PEAK function: ± 10%
AC and DC AC + DC TRMS	Measuring range	Resolution	Accuracy
	200.0 μA	0.1 μA	± 3.0% +20 Dgt at 50 … 1 kHz
	4000-mA	1-mA
	10.00 a	0.01-mA
DC DC A	200.0 μA	0.1 μA	± 1.5% + 5 Dgt
	4000-mA	1-mA	± 2.0% + 5 Dgt
	10.00 a	0.01-mA	± 2.0% + 5 Dgt
Resistance	400.0 Ω	0.1 Ω	± 1.0% + 10dgt
	4,000 kΩ	0.001 kΩ	± 1.0% + 5 Dgt
	40.00 kΩ	0.01 kΩ	± 1.0% + 5 Dgt
	400.0 kΩ	0.1 kΩ	± 1.0% + 5 Dgt
	4,000 MΩ	0.001mΩ	± 1.0% + 5 Dgt
	40.00 MΩ	0.01 MΩ	± 2.5% + 10dgt
Overvoltage protection; 600V AC / DC rms
Capacity	Measuring range	Resolution	Accuracy
	40.00 n	0.01 nF	± 3% + 20 Dgt
	400.0 nF	0.1 nF	± 3% + 8 Dgt
	4,000 μF	0.001 μF	± 3% + 8 Dgt
	40.00 μF	0.01 μF	± 3% + 8 Dgt
	400.0 μF	0.1 μF	± 3% + 8 Dgt
	4000 μF	1 μF	± 3% + 20 Dgt
Overvoltage protection; 600V AC / DC rms
Frequency	Measuring range	Resolution	Accuracy
	40.00 Hz	0.01 Hz
	400.0 Hz	0.1 Hz
	4,000 kHz	0.001 kHz
	40.00 kHz	0.01 kHz	± 0.2% 5 Dgt
	4,000 kHz	0.1 kHz
	4,000 Mhz	0.001 MHz
	10.00 MHz	0.01 Mhz
Overvoltage protection; 600V AC / DC rms
Sensitivity:�	> 2 Vrms (at 20 … 80% duty cycle and f < 100 kHz
	> 5 Vrms (at 20 … 80% duty cycle and f > 100 kHz
Duty cycle (duty cycle)	Measuring range	Resolution	Accuracy
	10.0 … 99.0%	0.1%	± 1.2% + 2 Dgt
Measurement at a frequency between    40 Hz … 10 kHz, amplitude ± 5V (100 μs … 100 ms)
Diode test	< 1.5-mA / 3.3V DC
Continuity test	Signal tone at> 50 Ω, test current < 0.35-mA
Specifications for the thermal imager
Field of view (FOV)	21° x 21°
Smallest focus distance	0.5 m / 1.6 ft
Spatial resolution (IFOV)	4,53 mrad
IR resolution	80 x 80 pixels
Temperature sensitivity	< 0.1°C / 0.18°F at 30°C (86°F)
NETD	100 mK
Image frequency	50 Hz
Focus	Focus free
Focal length	7.5 mm
Sensor type	Uncooled microbolometer
Spectral	8 … 14 μm
Measuring range object temperature	-20 … 260°C / -4 … 500°F
Measurement accuracy	± 3°C / 5.4°F, or 3% of the measured value,
	at 10 … 35°C / 50 … 95°F ambient temperature
	and > 0°C / 32°F object temperature
Other specifications
Display	4000 digits with bar graph, color TFT
Measuring rate	Three measurements per second
Automatic shutdown	15 … 60 minutes (adjustable and deactivatable)
Power supply battery	3.7V, 1400-mAh Li-ion battery, installed
Power supply micro USB	5V / 1A
Fuses	FF 10 A / 600V
Operating conditions	5 … 40°C / 41 … 104°F
	< 80% rh
Storage conditions	– 20°C … 60°C / -4 … 140°F
	< 80% rh
Reference temperature	18 … 28°C, 64 … 82°F
Dimensions	175 x 85 x 55 mm / 7 x 3 x 2 in
Weight	540 g / 1.2 lbs
Max. operating altitude	2000 m / 6561 ft above sea level
Electric security	Double insulation according to EN61010-1
	EMC: IEC / EN 61326-1
	CAT III 600V / CAT IV 300V
	Pollution degree 2
