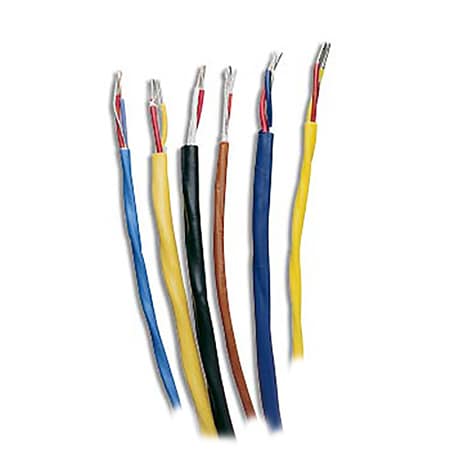

OMEGA TT-K-24-TWSH-SLE-200 Thermocouple Wire

Product Overview

The OMEGA TT-K-24-TWSH-SLE-200 is a premium-grade, twisted and shielded Type K thermocouple wire designed for critical temperature measurements in high-noise electrical environments. Featuring Special Limits of Error (SLE) accuracy calibration, durable PFA insulation, and an integrated twisted shielded design with a drain wire, this wire provides maximum protection against electromagnetic interference (EMI) and electrical noise. Supplied on a 200 ft (61 m) spool, it is ideal for precision laboratory testing, industrial process control, and sensitive data acquisition applications.

Key Features

• Special Limits of Error (SLE) Accuracy: Manufactured with high-purity thermocouple alloys to deliver tighter accuracy tolerance (±1.1°C or ±0.4%) compared to standard thermocouple wire.

• Twisted & Shielded Construction: Twisted pair conductors enclosed in an aluminized Mylar shield with a drain wire effectively block electrical noise and signal interference (EMI/RFI).

• Premium PFA Insulation & Jacket: High-performance PFA (Perfluoroalkoxy) insulation offers exceptional resistance to chemicals, moisture, abrasion, and extreme temperatures ranging from -200°C to 260°C.

• ANSI Color Coded: Standard ANSI color coding—Yellow for Positive (+), Red for Negative (-), and an overall Brown jacket with clear identification.

• Solid 24 AWG Conductor: 24 AWG solid wire provides excellent signal consistency, durability, and ease of termination.

Technical Specifications

Parameter	Specification
Brand	OMEGA Engineering
Model / Part Number	TT-K-24-TWSH-SLE-200
Thermocouple Type	Type K (CHROMEGA® / ALOMEGA®)
Accuracy Grade	Special Limits of Error (SLE) (±1.1°C or ±0.4%)
Wire Gauge (AWG)	24 AWG (Solid)
Shielding Type	Twisted Pair with Aluminized Mylar Shield & Drain Wire
Insulation & Jacket Material	PFA (Perfluoroalkoxy)
Temperature Range	-200°C to 260°C (-328°F to 500°F)
Spool Length	200 ft (61 m)
Color Code Standard	ANSI (Yellow +, Red -, Brown Outer Jacket)

Target Applications

• High-Noise Industrial Environments & Motor Drives

• Precision Data Acquisition Systems (DAQ)

• Aerospace & Automotive Test Benches

• Chemical Process Temperature Monitoring

• R&D Laboratory Environment Monitoring
