TT-J-24-1000 : OMEGA Thermocouple Wire

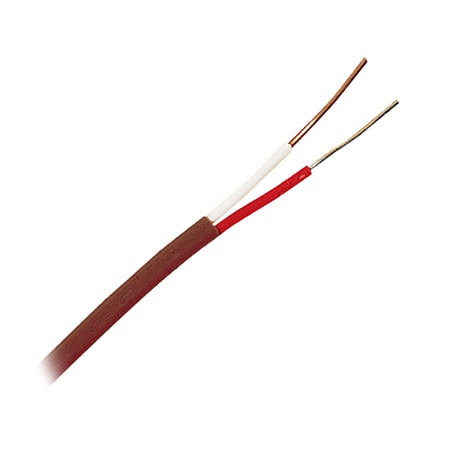

The OMEGA TT-J-24-1000 is a high-performance, duplex-insulated Type J thermocouple grade wire designed for reliable temperature measurement across industrial, laboratory, and OEM processing applications. Featuring premium PFA (Perfluoroalkoxy) insulation over solid 24 AWG conductors, this wire delivers exceptional resistance to moisture, chemicals, and mechanical wear over a temperature range of -210°C to 260°C. Supplied on a 1,000 ft (304.8 m) spool, it is an ideal choice for constructing custom Type J sensors or running long extension lines.

Key Features

• Type J Calibration: Manufactured with genuine Iron (Positive) and Constantan (Negative) conductors for reliable accuracy in reducing atmospheres and vacuum environments.

• High-Performance PFA Insulation: Provides outstanding dielectric strength, chemical inertness, moisture resistance, and low friction.

• Broad Temperature Range: Suitable for continuous operation from sub-zero temperatures (-210°C) up to 260°C.

• ANSI Color Coded: Complies with standard ANSI color coding for quick identification—White for Positive (+), Red for Negative (-), and Brown overall jacket.

• Solid 24 AWG Conductor: 24 AWG solid wire provides excellent structural integrity, stability, and ease of connection.

Technical Specifications

Parameter	Specification
Brand	OMEGA Engineering
Model / Part Number	TT-J-24-1000
Thermocouple Type	Type J (Iron / Constantan)
Wire Gauge (AWG)	24 AWG (Solid)
Insulation Material	PFA (Perfluoroalkoxy)
Temperature Range	-210°C to 260°C (-346°F to 500°F)
Spool Length	1,000 ft (304.8 m)
Color Code Standard	ANSI (White +, Red -, Brown Outer Jacket)
Nominal Size	Approx. 0.063 x 0.102 in (1.6 x 2.6 mm)

Target Applications

• Plastics and Injection Molding Process Control

• Vacuum and Inert Atmosphere Furnaces

• Heat Treating and Metal Processing

• Environmental Testing and Ovens

• Custom Sensor Fabrication & Extension Wiring
