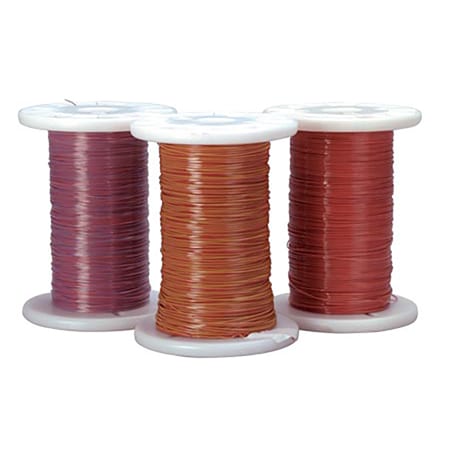

OMEGA TT-K-36-SLE-200 Fine Gauge Type K Thermocouple Wire

Product Overview

The OMEGA TT-K-36-SLE-200 is an ultra-fine 36 AWG, duplex-insulated Type K thermocouple grade wire designed for high-precision temperature measurements requiring fast response times and minimal thermal mass effect. Featuring Special Limits of Error (SLE) accuracy calibration and premium PFA insulation, this wire delivers exceptional performance and stability across temperatures ranging from -200°C to 260°C. Supplied on a 200 ft (61 m) spool, it is an ideal choice for micro-temperature sensing, laboratory research, medical devices, and tight-space sensor fabrications.

Key Features

• Fine 36 AWG Conductor: Fine wire diameter ensures ultra-fast response times and minimal heat conduction away from the measurement site.

• Special Limits of Error (SLE) Accuracy: Made with high-purity thermocouple alloys to deliver tighter tolerance (±1.1°C or ±0.4%) than standard grade thermocouple wire.

• High-Performance PFA Insulation: Provides excellent dielectric strength, flexibility, chemical resistance, and moisture protection.

• Wide Operating Temperature: Continuous performance from cryogenic conditions (-200°C) up to elevated temperatures (260°C).

• ANSI Color Coded: Follows standard ANSI color coding—Yellow for Positive (+), Red for Negative (-), and an overall Brown jacket.

Technical Specifications

Parameter	Specification
Brand	OMEGA Engineering
Model / Part Number	TT-K-36-SLE-200
Thermocouple Type	Type K (CHROMEGA® / ALOMEGA®)
Accuracy Grade	Special Limits of Error (SLE) (±1.1°C or ±0.4%)
Wire Gauge (AWG)	36 AWG (Solid)
Conductor Diameter	Approx. 0.005 in (0.127 mm)
Insulation Material	PFA (Perfluoroalkoxy)
Temperature Range	-200°C to 260°C (-328°F to 500°F)
Spool Length	200 ft (61 m)
Color Code Standard	ANSI (Yellow +, Red -, Brown Outer Jacket)

Target Applications

• Micro-Component and Electronic Chip Temperature Monitoring

• Medical and Biological Laboratory Testing

• Thermal Profiling in Small or Enclosed Test Chambers

• Fast-Response Surface and Air Sensor Assemblies

• Precision Aerospace and Defense R&D
